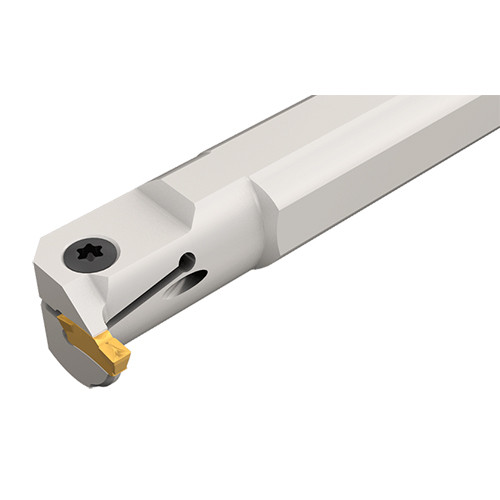

TGIR 25C-3
Grooving Toolholder ; 200 mm OAL ; 25 mm Shank Dia. ; 3 mm CW Min. ; 3 mm CW Max. ; 8 mm Max Depth ; Steel

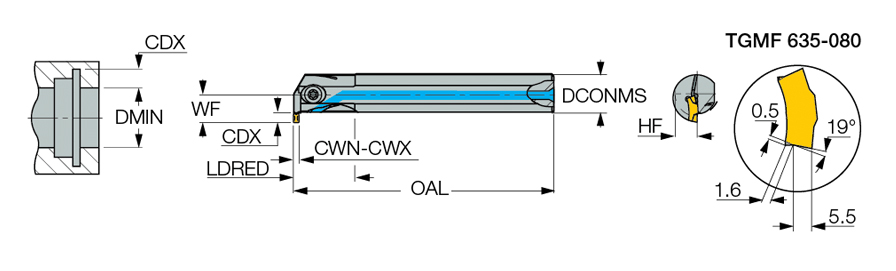

| Cutting Width Minimum (CWN) | 3 mm | Overall Length (OAL) | 200 mm |
| Cutting Width Maximum (CWX) | 3 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Depth Maximum (CDX) | 8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Body Width (WB) | 2.5 mm | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Minimum Bore Diameter (DMIN) | 32 mm | Body Material | Steel |
| Functional Width (WF) | 18.8 mm | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 40 mm | Measurement Type | Metric |
Product Features
| Family Description | Internal boring bars with coolant holes carrying TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.382
Related Documentation

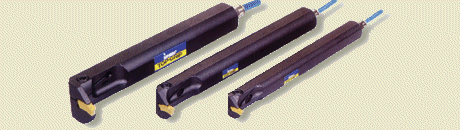

Bar holders with internal coolant supply for internal grooving and multi-directional turning machining with TOP-GRIP TGMF inserts. Excellent evacuation of chips. Minimum bore diameter 20.5 mm.
