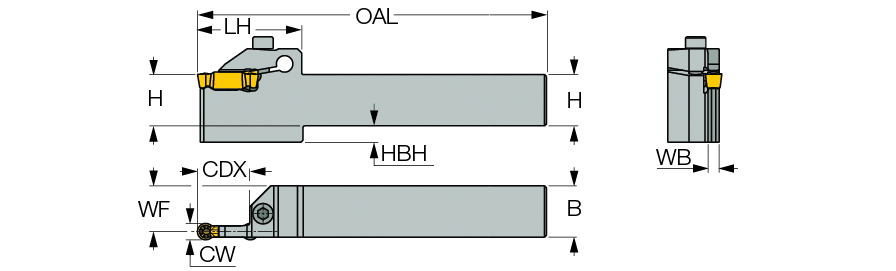

| Cutting Depth Maximum (CDX) | 25.5 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 25 mm | Application | | Ext. Profiling | Ext. Turning Aluminum Wheels | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Body Width (WB) | 5.4 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 22.3 mm | Measurement Type | Metric |
| Head Length (LH) | 51.5 mm | Head Bottom Offset Height (HBH) | 8 mm |
| Overall Length (OAL) | 170 mm |
Product Features
| Family Description | Tools with a very strong insert grip, for interrupted cuts and back turning aluminum wheels. | Country of Origin | Israel |

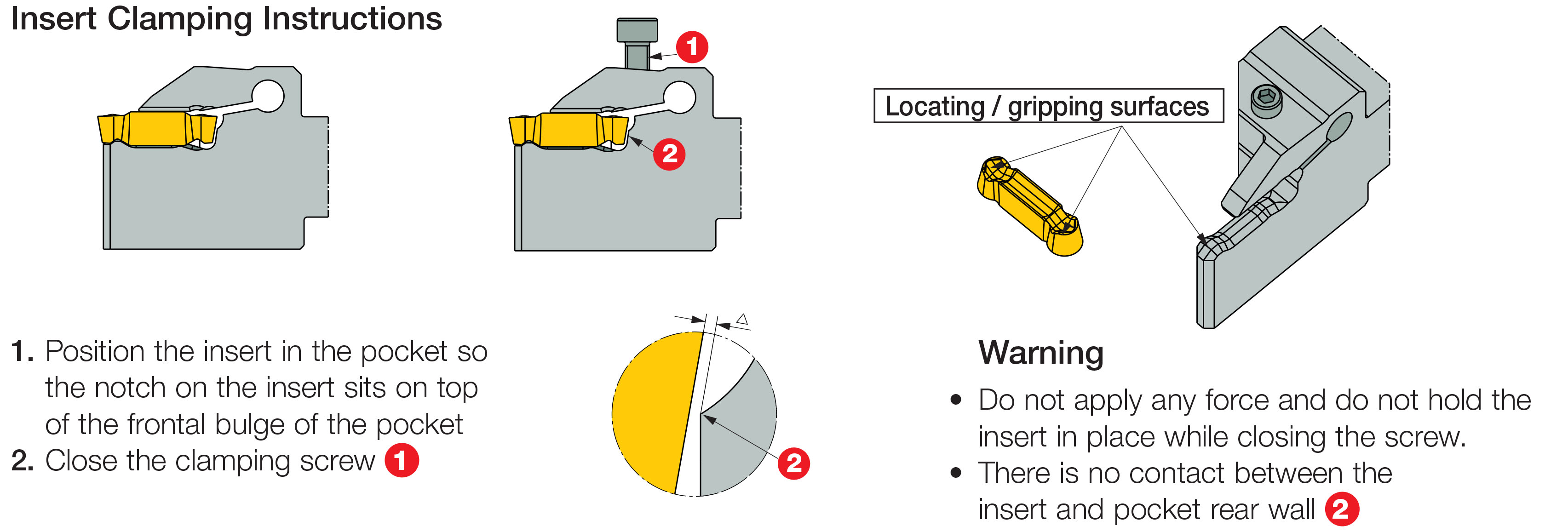

| Remarks | Clamping torque for FSHDR..-6: 7.5 Nxm, for FSHDR..-8: 10 Nxm |
Shipping Info
Package Weight
1.878
