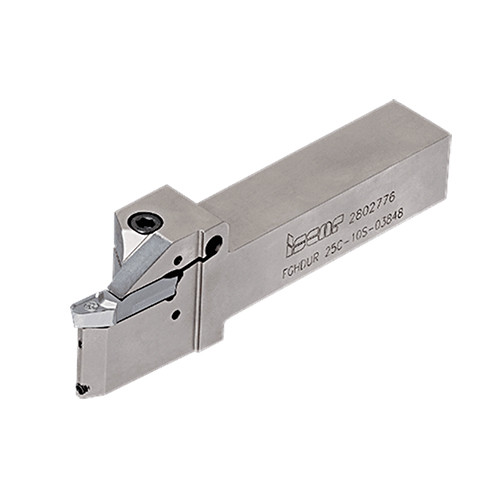

FGHDUR 25C-3A-10S
Grooving Toolholder; 25 mm × 25 mm Shank Size × 22.3 mm Max Depth × 150 mm OAL ; Steel

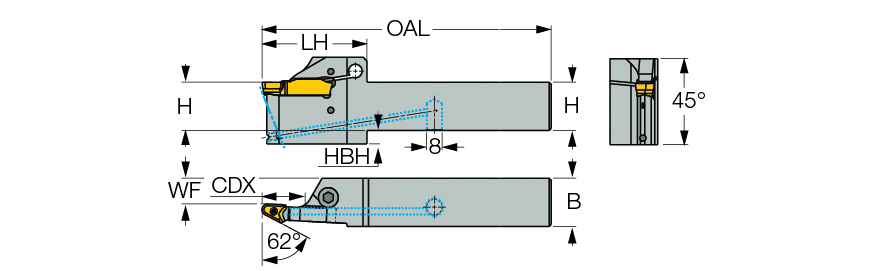

| Cutting Depth Maximum (CDX) | 22.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 25 mm | Application | | Ext. Turning Aluminum Wheels | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Width (WF) | 13.3 mm | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 54.4 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Head Bottom Offset Height (HBH) | 7 mm |
Product Features
| Family Description | Tools with internal coolant holes, very strong insert grip, used for interrupted cuts and back turning aluminum wheels. | Country of Origin | Israel |

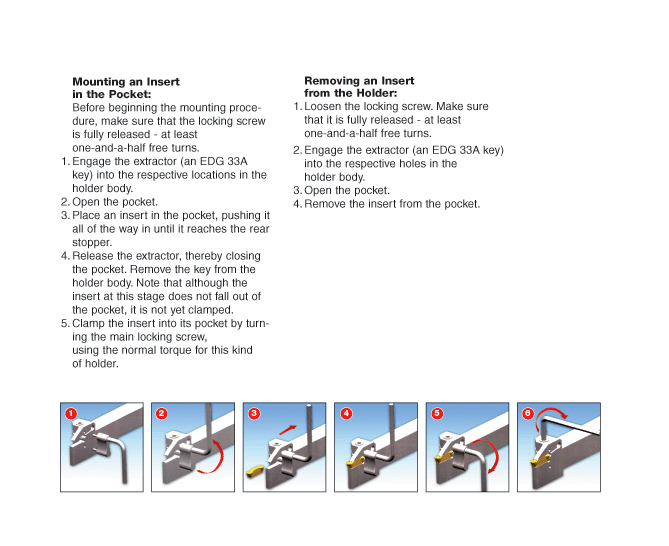

| Remarks | Note: For mounting and removing the inserts, click on More Info |
Shipping Info
Package Weight
1.687
