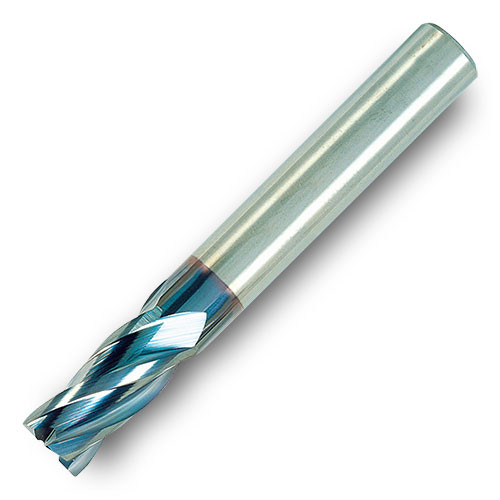

47D-1250R4RC01 IN2005
SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 2-1/4″ OAL ; 0.015″ RE ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 1/8″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | | Countersinking | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Depth of Cut Maximum (APMX) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 2-1/4″ | Grade | IN2005 |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.125″ |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Inch |
| End Shape | Corner Radius | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.022
