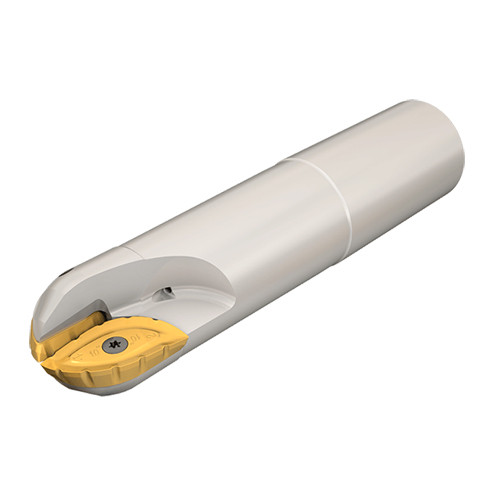

BCM D1.00-A-W1.00-C
Indexable End Mill; 1″ Dia. × 0.79″ LOC × 1″ Shank Dia. × 6.7″ OAL ; Weldon Shank

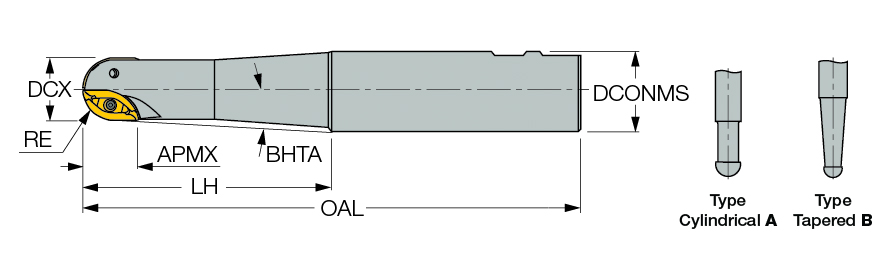

| Cutting Diameter (DC/DCX) | 1″ | Functional Length (LF) | 5.559″ |
| Cutting Diameter (DC) | 1″ | Tool Type | Ball nose endmills |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 1/2″ |
| Depth of Cut Maximum (APMX) | 0.79″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 6.7″ | Front Type | A |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | BCR D1.00-QT | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.16 Lbs | Cutting Diameter Maximum (DCX) | 1″ |
| Head Length (LH) | 2-3/4″ |
Product Features
| Family Description | DROPMILL, Ball nose endmills carrying tangent straight edge inserts. Used for semi finishing and finishing at high feed rates. Its unique design provides a fully effective cutter - two cutting edges even at small depths of cut. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.499
