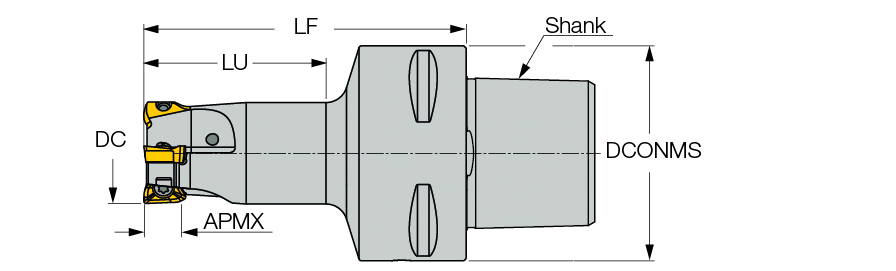

HM390 ETC D20-3-L34-C4-07
| Cutting Diameter (DC/DCX) | 0.787″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 0.787″ | Tool Type | 90° Indexable End Mill |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1.335″ |
| Depth of Cut Maximum (APMX) | 0.2″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 130 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 0.73 Kg |
Product Features
| Family Description | 90° endmills with CAMFIX shanks carrying HM390 TCKT 0703 triangular inserts with 3 helical cutting edges. | Country of Origin | IL |
| Remarks | Insert clamping screw must be lubricated every indexing. Tightening torque .66 lbfxft. |
Shipping Info
Package Weight
.8490
