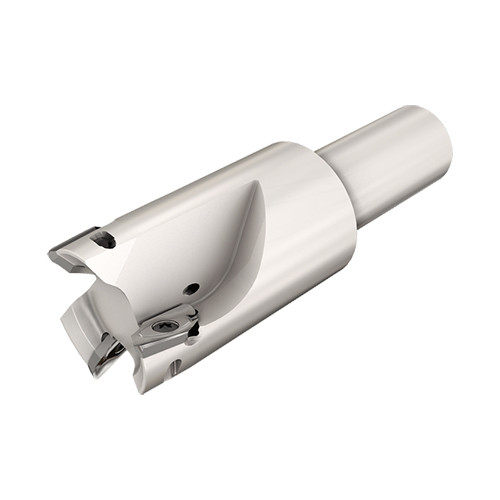

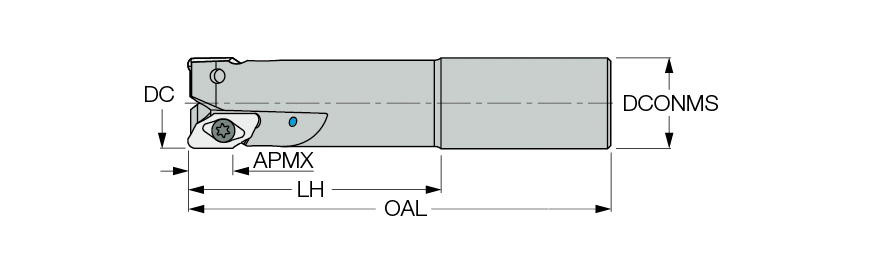

HM90 EAL-D100-C100L8-16
Indexable End Mill; 1″ Dia. × 0.61″ LOC × 1″ Shank Dia. × 8″ OAL ; 1 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1″ | Head Length (LH) | 2.64″ |
| Cutting Diameter (DC) | 1″ | Tool Type | 90° Indexable for Aluminum |
| Cutting Item Count (CICT) | 1 | Flute Count (NOF) | 1 |
| Depth of Cut Maximum (APMX) | 0.61″ | Corner Radius (RE) | 0.177″ |
| Overall Length (OAL) | 8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 25.9 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM90 APCR 160502R-P | Connection Code Machine Side (CCMS) | Cylindrical |
| Weight of Item (WT) | 1.45 Lbs |
Product Features
| Family Description | Long reach 90° endmills carrying HM90 APCR 1605 inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .126, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 Corners larger than .177 to be used only on BR tools For adaptation, click on More Info |
Shipping Info
Package Weight
1.719
