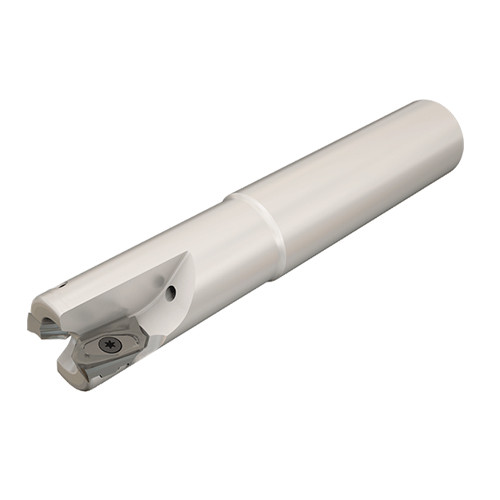

HM90 EAL-D100-C100L5.5-15
Indexable End Mill; 1″ Dia. × 0.551″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 2 FL ; Round Shank ; 90 Degrees

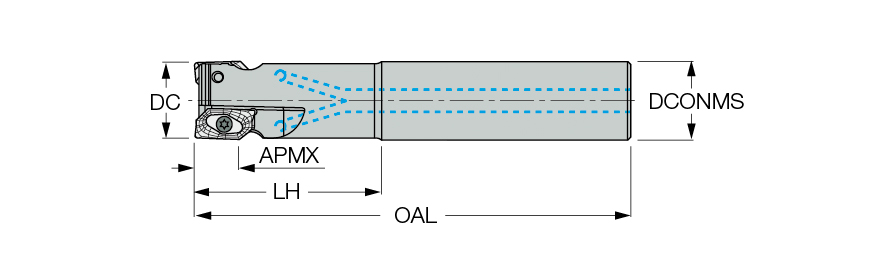

| Cutting Diameter (DC/DCX) | 1″ | Weight of Item (WT) | 0.99 Lbs |
| Cutting Diameter (DC) | 1″ | Head Length (LH) | 2.36″ |
| Cutting Item Count (CICT) | 2 | Tool Type | 90° Indexable for Aluminum |
| Depth of Cut Maximum (APMX) | 0.551″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 5-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 25 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM90 AXCR 150540R-P | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Long reach 90° endmills carrying HM90 AXCR 1505... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .157, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 For adaptation, click on More Info |
Shipping Info
Package Weight
1.3
