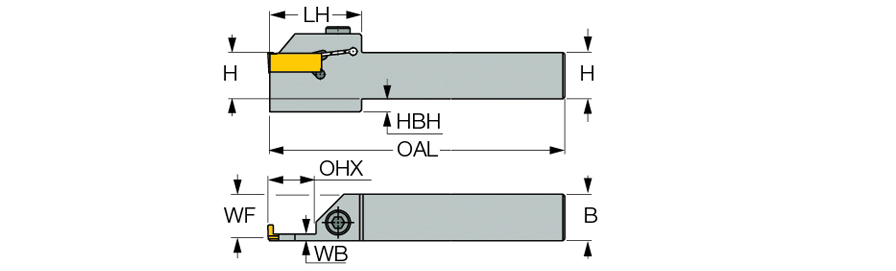

HLPGL 2525-12-A4.5-T30
| Cutting Width Minimum (CWN) | 0.177″ | Overall Length (OAL) | 6.299″ |
| Cutting Width Maximum (CWX) | 0.177″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 1.181″ | Application | | Face and Radial Grooving | Radial and Face Grooving | |
| Shank Height (H) | 0.984″ | Body Material | Steel |
| Shank Width (B) | 0.984″ | Tool Type | Indexable Turn & Groov Tools |
| Body Width (WB) | 0.177″ | Measurement Type | Inch |
| Functional Width (WF) | 0.898″ | Head Bottom Offset Height (HBH) | 0.28″ |
| Head Length (LH) | 2.165″ |
Product Features
| Family Description | Tools for L-type LPGIR/L inserts. Used for axial grooves inside radial grooves and for radial grooves inside axial grooves. | Country of Origin | Israel |
Shipping Info
Package Weight
1.735
