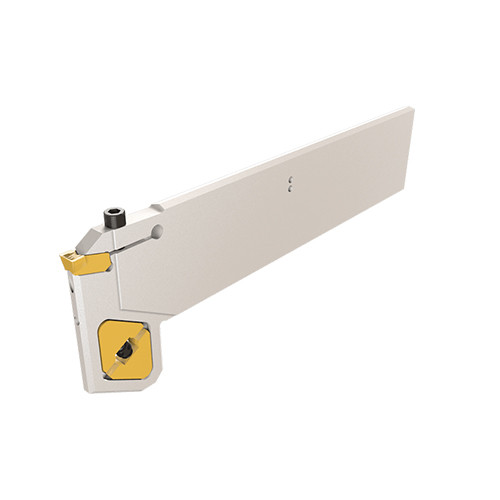

CGHNM 53-P8-AV
Grooving Toolholder ; 9.252″ OAL ; 2.071″ Shank Height ; 0.315″ CW Min. ; 0.315″ CW Max. ; 3.661″ Max Depth ; Steel

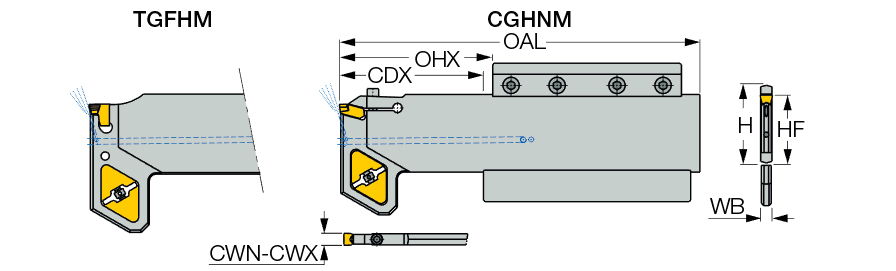

| Cutting Width Minimum (CWN) | 0.315″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.315″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Cutting Depth Maximum (CDX) | 3.661″ | Body Material | Steel |
| Shank Height (H) | 2.071″ | Tool Type | Blades and adapters for Parting & Grooving |
| Body Width (WB) | 0″ | Measurement Type | Inch |
| Overall Length (OAL) | 9.252″ |
Product Features
| Family Description | Anti-vibration blades for deep grooving and turning. | Country of Origin | Israel |
| Remarks | Apply 145 PSI minimum cooling pressure. |
Shipping Info
Package Weight
1.79
