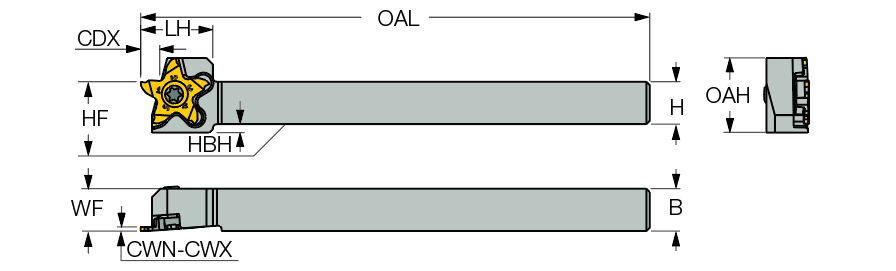

PCHLS 10-17
Grooving Toolholder ; 120 mm OAL ; 10 mm Shank Height ; 10 mm Shank Width ; 0.25 mm CW Min. ; 3.18 mm CW Max. ; 4 mm Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.25 mm | Overall Length (OAL) | 120 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 4 mm | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Parting | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Measurement Type | Metric |
| Functional Width (WF) | 10 mm | Head Bottom Offset Height (HBH) | 2 mm |
| Head Length (LH) | 17 mm |
Product Features
| Family Description | Tools carrying PENTACUT-17 inserts (with 5 cutting edges) for grooving, parting, and recessing next to high shoulders on small diameter parts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.304
