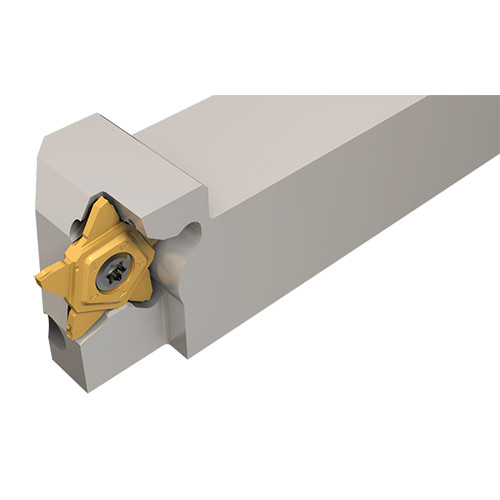

PCHL 20-24-JHP-MC
Grooving Toolholder ; 95 mm OAL ; 20 mm Shank Height ; 20 mm Shank Width ; 0.5 mm CW Min. ; 3.2 mm CW Max. ; 6.5 mm Max Depth ; Steel

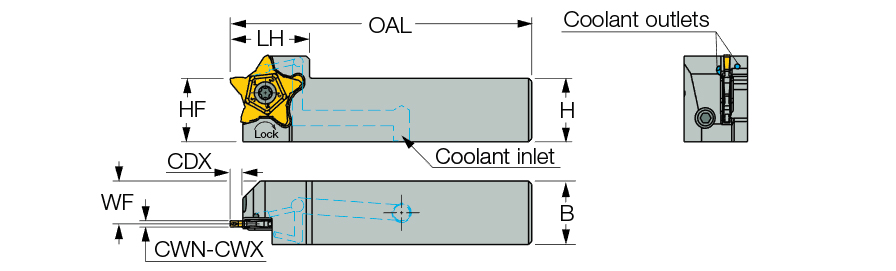

| Cutting Width Minimum (CWN) | 0.5 mm | Head Length (LH) | 25 mm |
| Cutting Width Maximum (CWX) | 3.2 mm | Overall Length (OAL) | 95 mm |
| Cutting Depth Maximum (CDX) | 6.5 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm | Application | | Ext. Grooving | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 13.5 mm | Measurement Type | Metric |
Product Features
| Family Description | Grooving, parting and recessing tools carrying PENTA inserts with bottom inlets for high-pressure coolant. | Country of Origin | Israel |
| Remarks | For more details click on More Info |
Shipping Info
Package Weight
0.664
