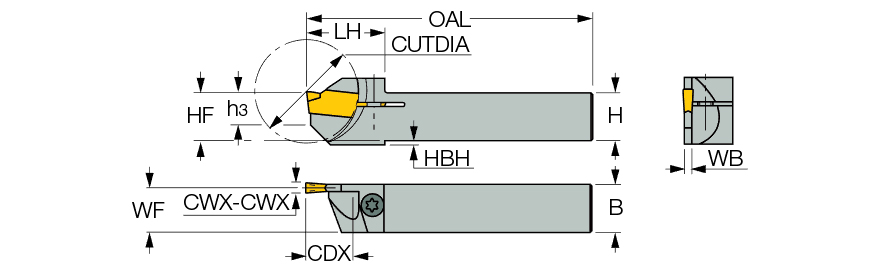

PHSR 12-2.4
Grooving Toolholder ; 150 mm OAL ; 12 mm Shank Height ; 12 mm Shank Width ; 2.4 mm CW Min. ; 3.18 mm CW Max. ; Steel
| Cutting Width Minimum (CWN) | 2.4 mm | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 12 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Parting | |
| Shank Width (B) | 12 mm | Body Material | Steel |
| Body Width (WB) | 1.9 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 11.1 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm |
Product Features
| Family Description | External machining holders for Swiss-type and automatic machines for GDMW/GDMY inserts | Country of Origin | Israel |

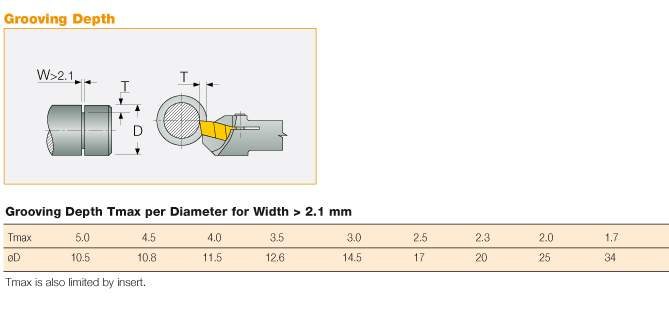

| Remarks | CDX=Max depth capacity, Click More info to see the chart |
Shipping Info
Package Weight
0.392
