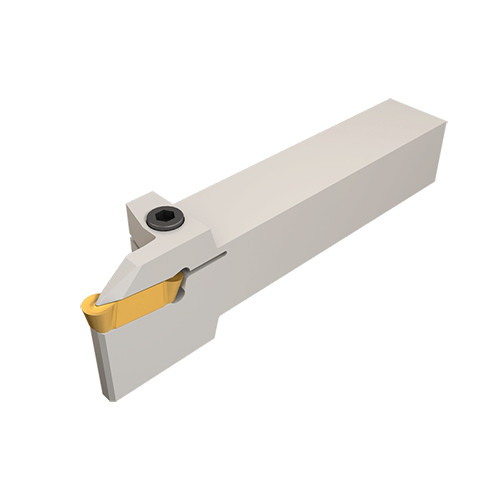

GHDR 25-8A
Grooving Toolholder ; 150 mm OAL ; 25 mm Shank Height ; 25 mm Shank Width ; 8 mm CW Min. ; 8 mm CW Max. ; 25 mm Max Depth ; Steel

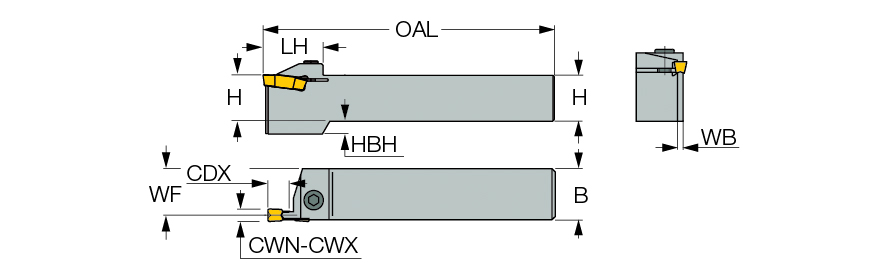

| Cutting Width Minimum (CWN) | 8 mm | Overall Length (OAL) | 150 mm |
| Cutting Width Maximum (CWX) | 8 mm | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 25 mm | Application | | Ext. Turning Aluminum Wheels | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Body Width (WB) | 6 mm | Measurement Type | Metric |
| Functional Width (WF) | 22 mm | Head Bottom Offset Height (HBH) | 7.6 mm |
| Head Length (LH) | 40 mm |
Product Features
| Family Description | External tools for turning, grooving and parting; upper jaw with hard coating to sustain chip deflection | Country of Origin | Israel |

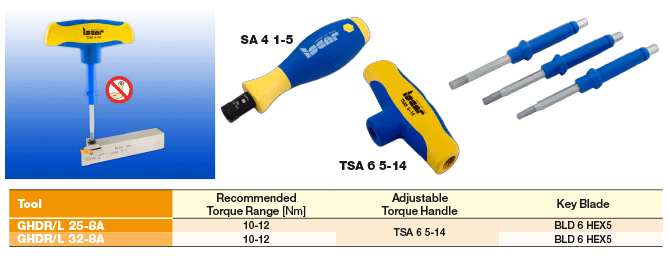

| Remarks | Upper jaw with hard coating to sustain chip deflection To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.602
