GHFGR 32-105-8

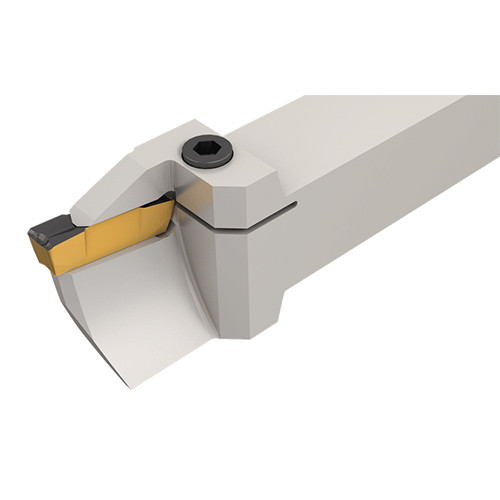

Grooving Toolholder; 32 mm × 32 mm Shank Size × 25 mm Max Depth × 170 mm OAL ; Steel

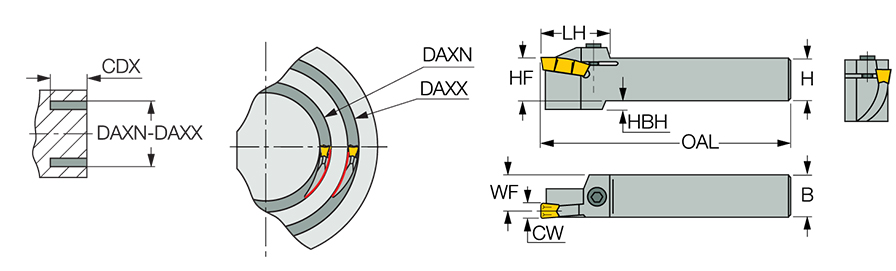

| Cutting Depth Maximum (CDX) | 25 mm | Coolant Supply Property (CSP) | External |
| Shank Height (H) | 32 mm | Application | | Face Grooving | Face Grooving & Turning | |
| Shank Width (B) | 32 mm | Axial Groove Outside Diameter Minimum (DAXN) | 105 mm |
| Body Width (WB) | 7 mm | Axial Groove Outside Diameter Maximum (DAXX) | 160 mm |
| Functional Width (WF) | 28.3 mm | Body Material | Steel |
| Head Length (LH) | 43.5 mm | Tool Type | Face Turning & grooving Tools |
| Overall Length (OAL) | 170 mm | Measurement Type | Metric |
Product Features
| Family Description | Holders for face grooving and turning Dmin. 80 mm. | Country of Origin | Israel |

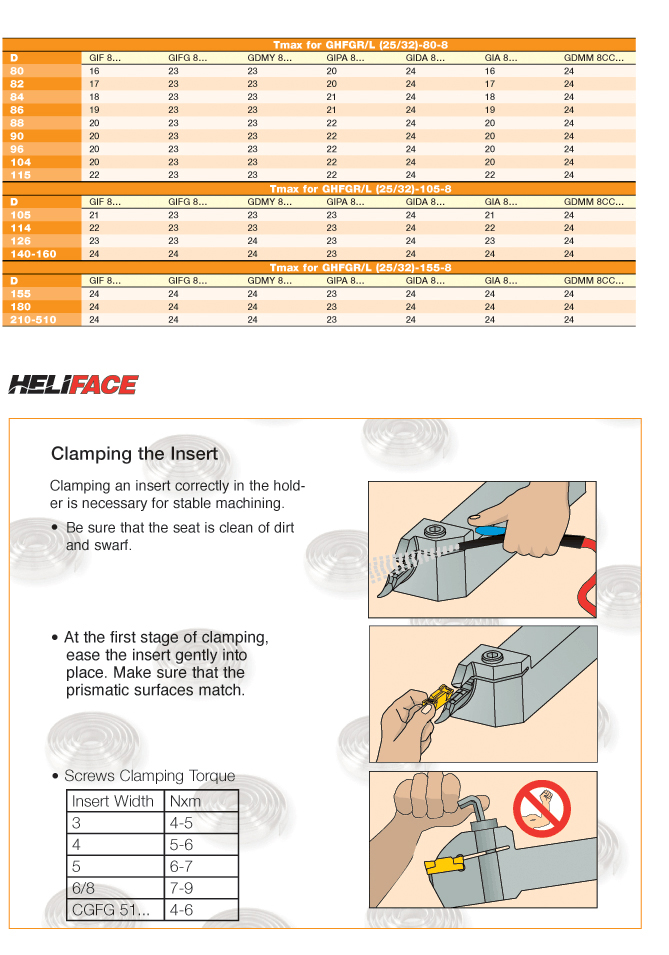

| Remarks | No limitation to widening the groove either way after initial grooving CDX depends on the penetration diameter and the insert For user guide, see pages clamping instructions, click on More Info. |
Shipping Info
Package Weight
2.747
Related Documentation
GHFG integral toolholders for face grooving and turning in both directions. Initial grooving of major diameter ranges 50 to 80 mm with holders GHFG, inserts GIFG-8. 80 to 250 mm with GHFGR/L and GIF-8. Grooving depths up to 25 mm.
