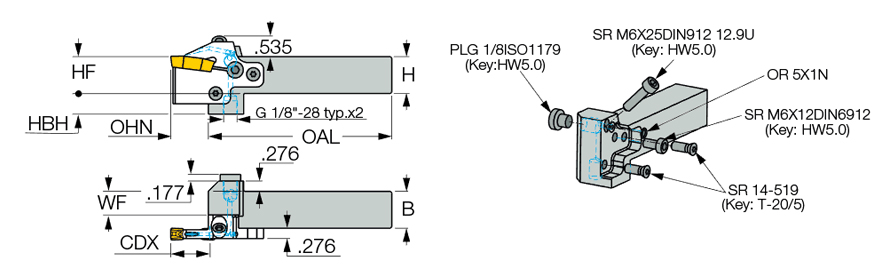

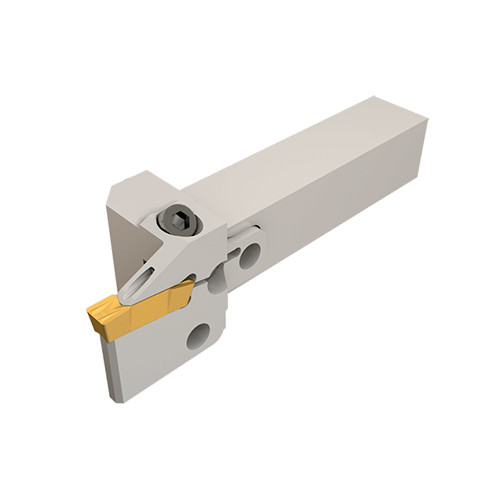

GHAL 25.4-8-JHP
Grooving Toolholder; 1″ × 1″ Shank Size × 1.004″ Max Depth × 4.996″ OAL ; Steel
| Cutting Depth Maximum (CDX) | 1.004″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Square Shanks |
| Functional Width (WF) | 0.646″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.996″ | Head Bottom Offset Height (HBH) | 0.54″ |
Product Features
| Family Description | Holders with high-pressure coolant channels for grooving and turning adapters carrying .315″ width inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.795
