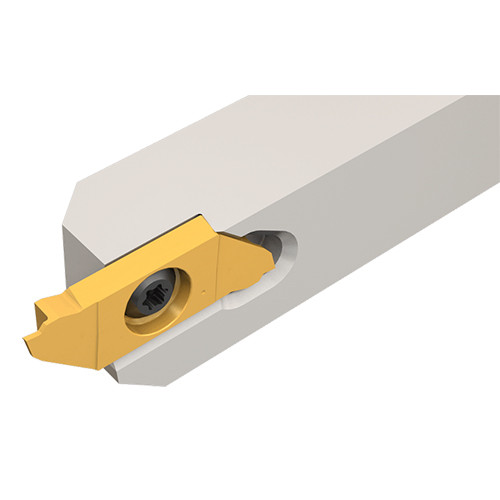

SCHL 12-22BF
Grooving Toolholder ; 4.921″ OAL ; 0.472″ Shank Height ; 0.472″ Shank Width ; 0.02″ CW Min. ; 0.098″ CW Max. ; 0.315″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.02″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.098″ | Application | | Ext. Back Turning | Ext. Grooving | Ext. Grooving & Turning | Ext. Turning | Parting | Threading (Ext.) Groove Turn T | |
| Cutting Depth Maximum (CDX) | 0.315″ | Body Material | Steel |
| Shank Height (H) | 0.472″ | Tool Type | Turn-Groove Tools |
| Shank Width (B) | 0.472″ | Measurement Type | Inch |
| Overall Length (OAL) | 4.921″ |
Product Features
| Family Description | Grooving and turning tools with back and front clamping for Swiss-type and automatic machines. | Country of Origin | Israel |
| Remarks | Recommended tightening torque: 7.1-10.6 lbf x in |
Shipping Info
Package Weight
0.362
