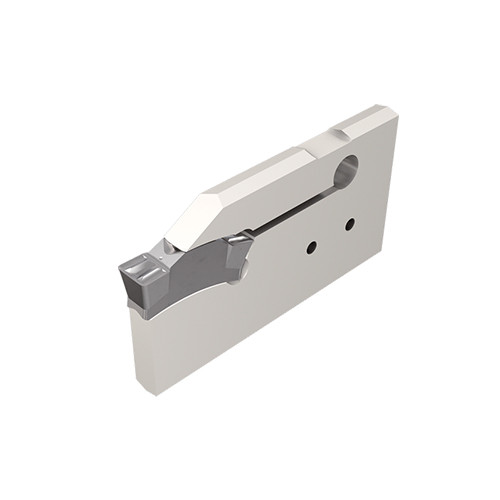

TGHN 32-6S

Name: TGHN 32-6S
Brand: TOPGRIP
SKU: EH232850049
Price: 121.70 USD
Availability: InStock

Grooving Toolholder ; 2.193″ OAL ; 1.26″ Shank Height ; 0.236″ CW Min. ; 1/4″ CW Max. ; Steel

Item # EH232850049

Brand: Iscar

MFG #: 2850049

Alternate MFG #: 02850049

Legacy Part #: EH232850049

UPC #: 7291075075403

TradeName: TOP-GRIP TOOLS

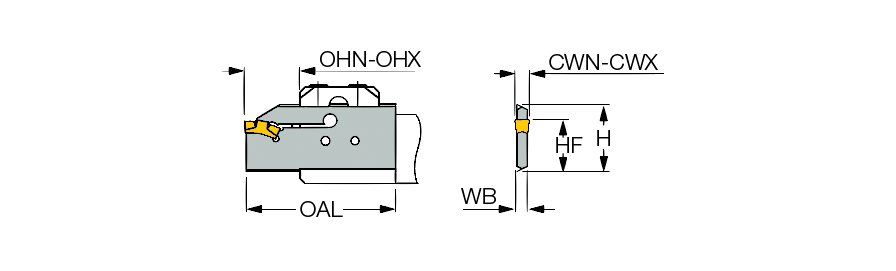

Cutting Width Minimum (CWN)

0.236″

Coolant Supply Property (CSP)

External

Cutting Width Maximum (CWX)

1/4″

Application

| Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling |

Shank Height (H)

1.26″

Body Material

Steel

Body Width (WB)

0.205″

Tool Type

Turn-Groove Tools

Overall Length (OAL)

2.193″

Measurement Type

Inch

Product Features

Family Description

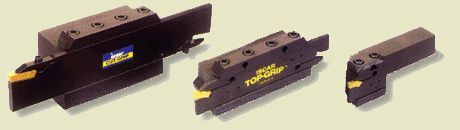

Single-ended blades carrying TOP-GRIP utility grooving and turning inserts.

Country of Origin

Israel

Remarks

Use the drilled holes on blade for min. and max. overhang Grooving depth is limited by the insert

Package Weight

0.134
