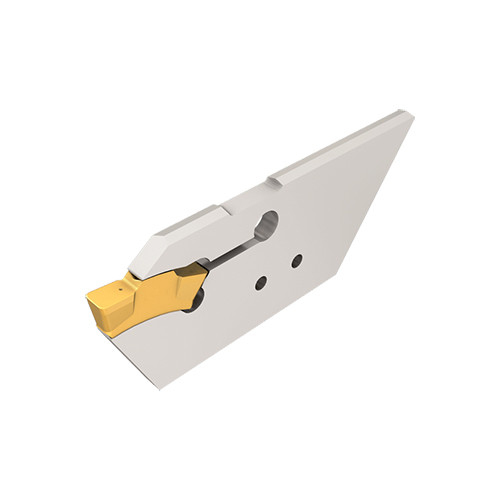

TGHN 26-4M
Grooving Toolholder ; 2.48″ OAL ; 1.024″ Shank Height ; 0.157″ CW Min. ; 0.197″ CW Max. ; Steel

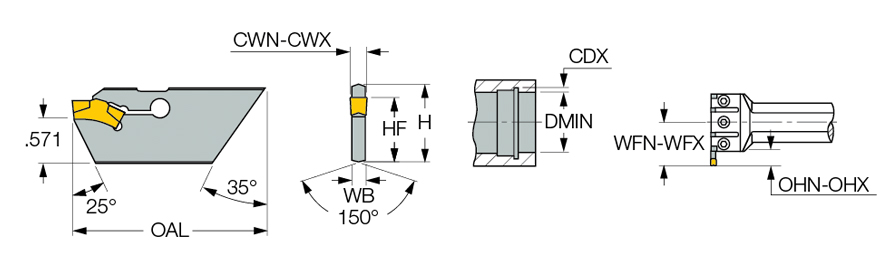

| Cutting Width Minimum (CWN) | 0.157″ | Coolant Supply Property (CSP) | External |
| Cutting Width Maximum (CWX) | 0.197″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Profiling | |
| Shank Height (H) | 1.024″ | Body Material | Steel |
| Body Width (WB) | 0.126″ | Tool Type | Turn-Groove Tools |
| Minimum Bore Diameter (DMIN) | 2.756″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.48″ |
Product Features
| Family Description | Internal machining blades for TOP-GRIP utility grooving and turning inserts. | Country of Origin | Israel |
| Remarks | Grooving depth (CDX) varies in conformance with blade's overhang (WFN-WFX and depends on the bore diameter (D) For grooving capacity, click More Info TGHN 26...-M can be modified from external double-sided TGHN blades |
Shipping Info
Package Weight
0.077
