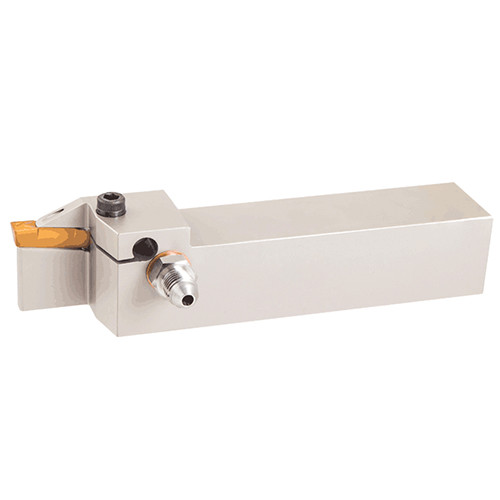

GHDR 31.7-8-JHP
Grooving Toolholder ; 7″ OAL ; 1-1/4″ Shank Height ; 1-1/4″ Shank Width ; 0.26″ CW Min. ; 0.327″ CW Max. ; 1″ Max Depth ; Steel

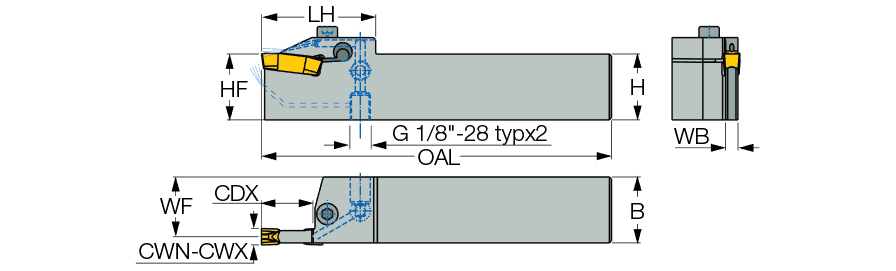

| Cutting Width Minimum (CWN) | 0.26″ | Head Length (LH) | 2.19″ |
| Cutting Width Maximum (CWX) | 0.327″ | Overall Length (OAL) | 7″ |
| Cutting Depth Maximum (CDX) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 1-1/4″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | |
| Shank Width (B) | 1-1/4″ | Body Material | Steel |
| Body Width (WB) | 0.232″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1.13″ | Measurement Type | Inch |
Product Features

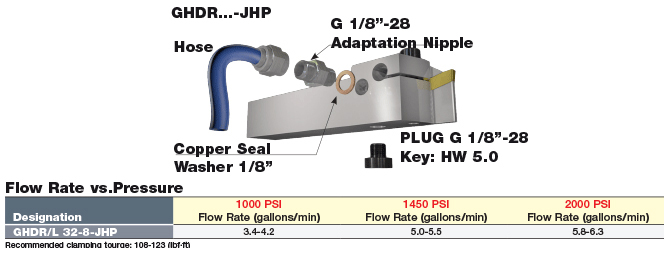

| Family Description | CUT-GRIP tools with channels for high-pressure coolant for grooving and turning. | Country of Origin | Israel |
| Remarks | For more details click on More Info To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
2.702
