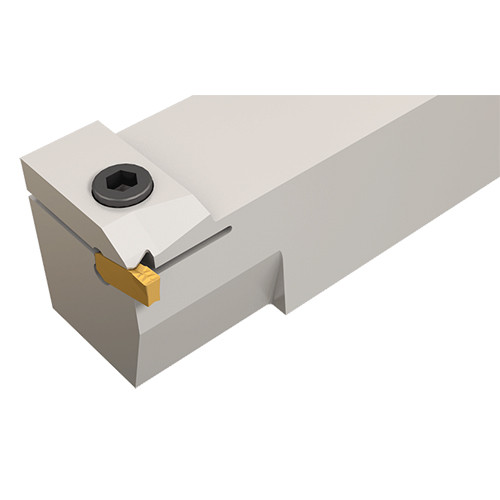

GHMPL 25.4
Grooving Toolholder; 1″ × 1″ Shank Size to 0.252″ Width × 0.189″ Max Depth × 6″ OAL ; Steel

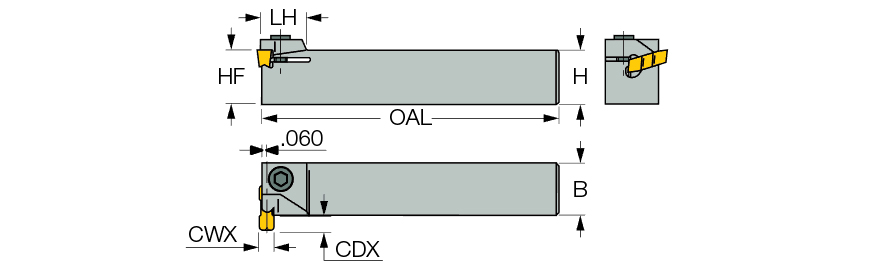

| Cutting Width Maximum (CWX) | 0.252″ | Coolant Supply Property (CSP) | External |
| Cutting Depth Maximum (CDX) | 0.189″ | Application | | Ext. Grooving | Face Grooving Along Shaft | Pulley V Grooving | Threading (Ext.) Groove Turn T | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Turn-Groove Tools |
| Head Length (LH) | 0.67″ | Measurement Type | Inch |
Product Features

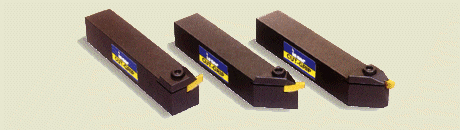

| Family Description | CUT-GRIP perpendicular toolholders for shallow radial and axial grooving. Light turning, small depth of cut (ap=.004-.020″), and small feed (f=.004 ipr). | Country of Origin | Israel |
| Remarks | For insert clamping instructions, click on More Info. To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on More Info |
Shipping Info
Package Weight
1.688
