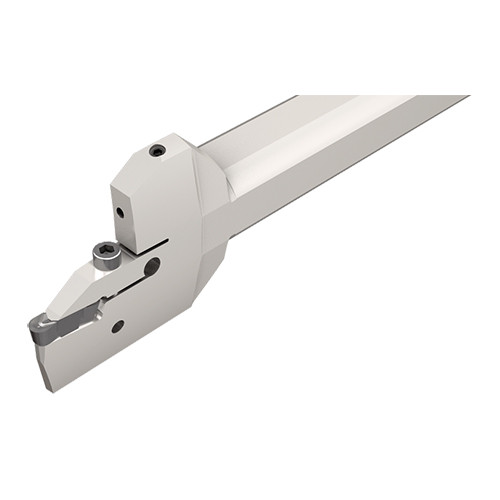

GHIFR 38.1C-8A-8
Grooving Toolholder; 1-1/2″ Shank Dia. × 2.756″ Max Depth × 13″ OAL ; Steel

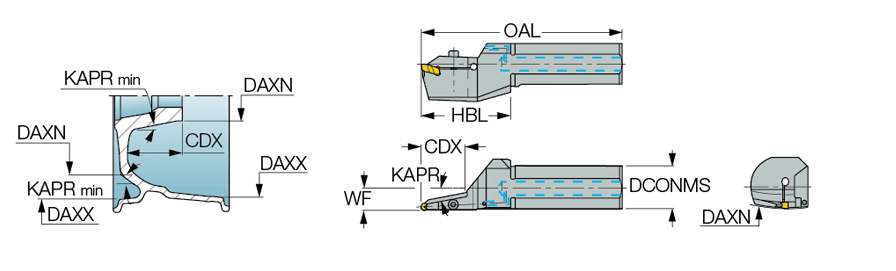

| Cutting Depth Maximum (CDX) | 2.756″ | Application | | Int. Machining Aluminum Wheels | |
| Minimum Bore Diameter (DMIN) | 11.8″ | Axial Groove Outside Diameter Minimum (DAXN) | 11.8″ |
| Functional Width (WF) | 0.73″ | Axial Groove Outside Diameter Maximum (DAXX) | 14.2″ |
| Overall Length (OAL) | 13″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Tool Type | Indexable Turn & Groov Tools |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
Product Features
| Family Description | 8° and 10° approach angle boring bars used for facing and internal machining. | Country of Origin | Israel |
| Remarks | Upper jaw with hard coating to sustain chip deflection |
Shipping Info
Package Weight
5.512
