GHSR 12.7-3-JHP-SL
Grooving Toolholder ; 4″ OAL ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.11″ CW Min. ; 0.157″ CW Max. ; Steel

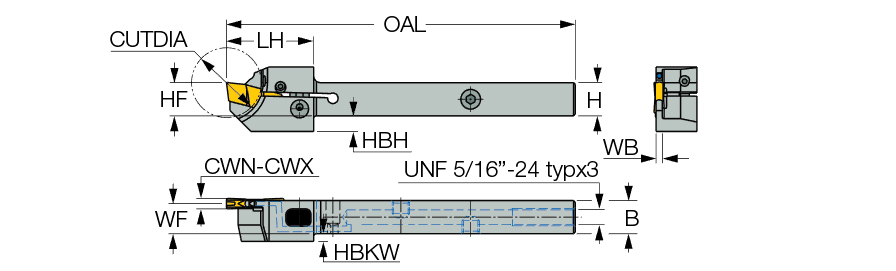

| Cutting Width Minimum (CWN) | 0.11″ | Overall Length (OAL) | 4″ |
| Cutting Width Maximum (CWX) | 0.157″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 1/2″ | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Threading (Ext.) Groove Turn T | |
| Shank Width (B) | 1/2″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.45″ | Measurement Type | Inch |
| Head Length (LH) | 1″ |
Product Features

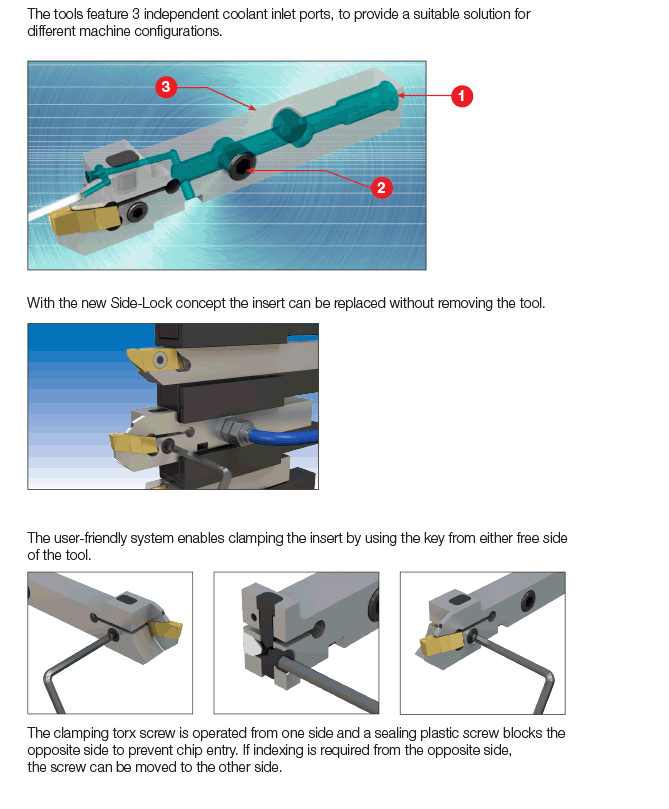

| Family Description | Grooving and turning tools with side lock mechanism and channels for high-pressure coolant. The tools were designed for Swiss-type and automatic machines. | Country of Origin | Israel |
| Remarks | When using GIVR/L inserts, tool holder's seat needs to be modified For more details, click on More Info |
Shipping Info
Package Weight
0.337
