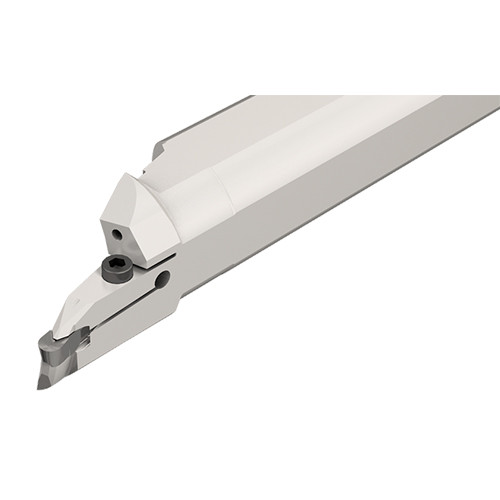

GHIUR 50.8C-15A-8
Grooving Toolholder; 2″ Shank Dia. × 14″ OAL ; Steel

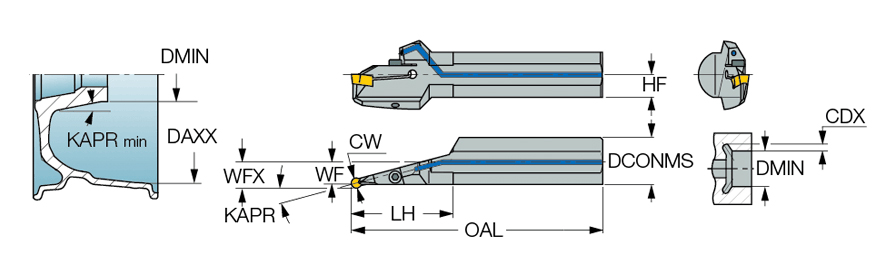

| Cutting Depth Maximum (CDX) | 0″ | Coolant Supply Property (CSP) | Coolant Thru |
| Minimum Bore Diameter (DMIN) | 3.93″ | Application | | Int. Machining Aluminum Wheels | |
| Functional Width (WF) | 0.91″ | Body Material | Steel |
| Head Length (LH) | 3.15″ | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 14″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2″ |
Product Features
| Family Description | Internal grooving and turning bars for machining aluminum wheels. | Country of Origin | Israel |
| Remarks | Upper jaw with hard coating to sustain chip deflection |
Shipping Info
Package Weight
9.603
