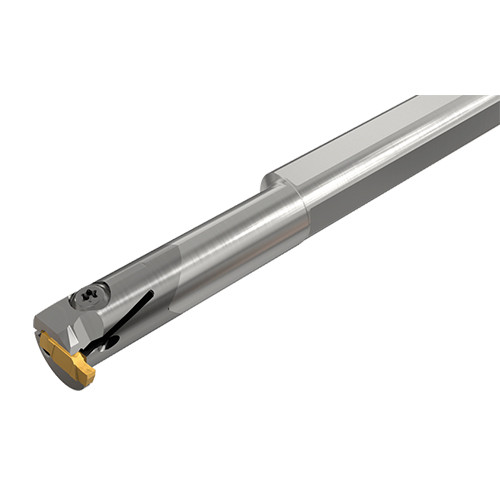

GHIR 19SC-3
Grooving Toolholder ; 8″ OAL ; 3/4″ Shank Dia. ; 0.079″ CW Min. ; 0.138″ CW Max. ; 0.177″ Max Depth ; Steel

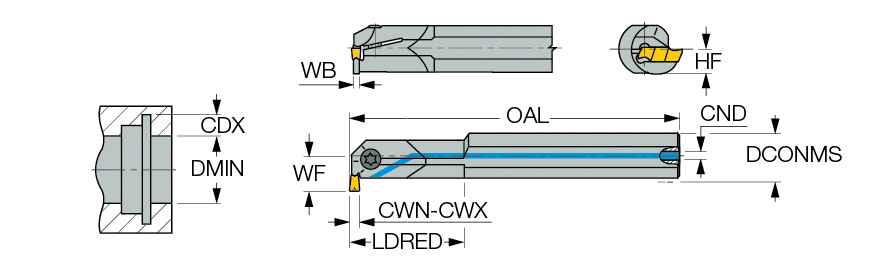

| Cutting Width Minimum (CWN) | 0.079″ | Overall Length (OAL) | 8″ |
| Cutting Width Maximum (CWX) | 0.138″ | Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Cutting Depth Maximum (CDX) | 0.177″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Width (WB) | 0.065″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.787″ | Body Material | Steel |
| Functional Width (WF) | 0.57″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2-3/4″ | Measurement Type | Inch |
Product Features

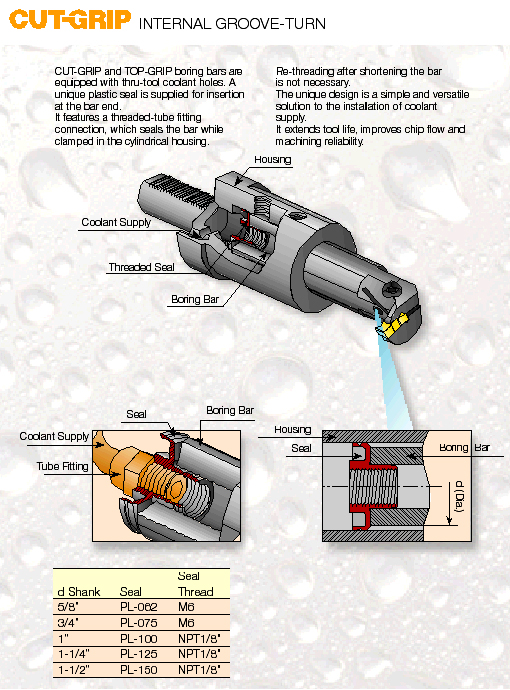

| Family Description | Grooving and turning boring bars with carbide shanks and coolant holes. | Country of Origin | Israel |
| Remarks | Tool head is made of steel For using TIPI insert, toolholder seat needs to be modified according to insert profile, to ensure clearance |
Shipping Info
Package Weight
1.377
