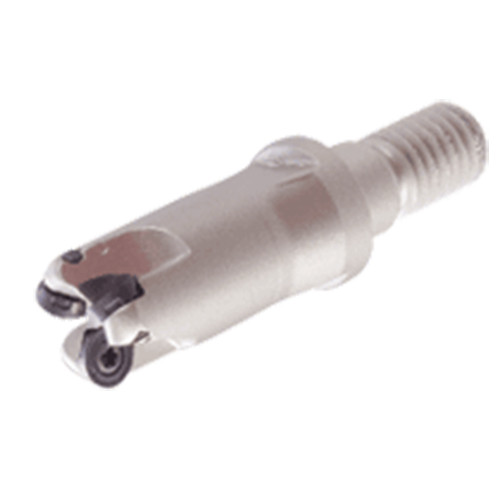

ERCM D1.50-M16-CP.50
Indexable End Mill; 1″ Dia. × 0.205″ LOC × 1.14″ Shank Dia.

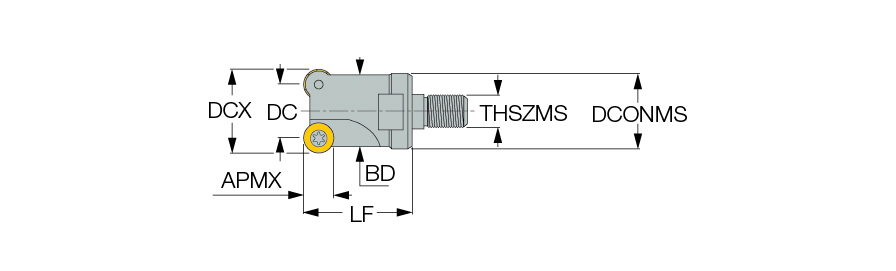

| Cutting Diameter (DC/DCX) | 1″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 1″ | Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Cutting Item Count (CICT) | 3 | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 0.205″ | Coolant Supply Property (CSP) | External |
| Ramping Angle Maximum (RMPX) | 6.5 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.14″ | Body Material | Steel |
| Master Insert Identification (MIID) | R90MT 43-RM | Connection Code Machine Side (CCMS) | FLEXFIT |
| Weight of Item (WT) | 0.42 Lbs | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Functional Length (LF) | 1.693″ |
Product Features
| Family Description | Endmills with FLEXFIT threaded adaptation carrying round inserts for profiling and milling round corners (ROUNDMILL). | Country of Origin | Israel |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info |
Shipping Info
Package Weight
0.626
