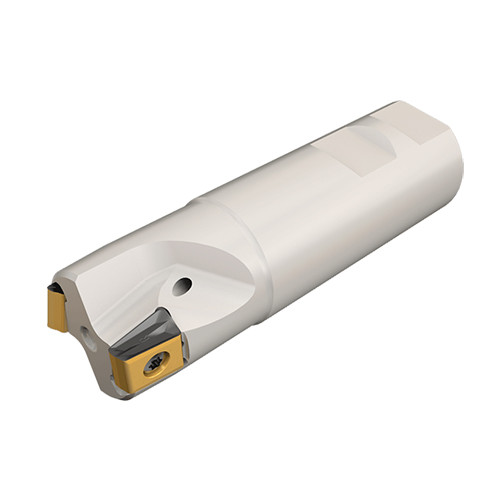

T490 ELN D1.50-3-C150-13B
Indexable End Mill; 1-1/2″ Dia. × 0.49″ LOC × 1-1/2″ Shank Dia. × 9.84″ OAL × 1.9″ LU ; 3 FL ; Round Shank ; 90 Degrees

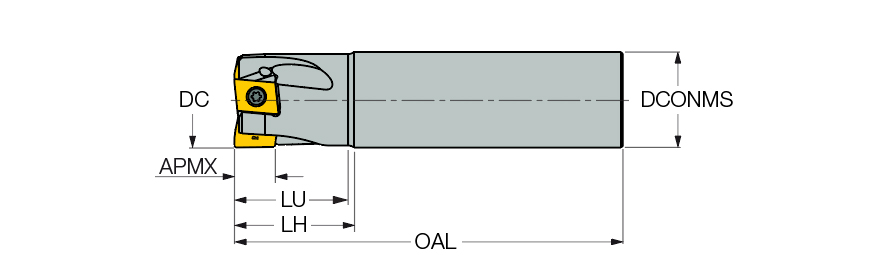

| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1.97″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 9.84″ |
| Cutting Item Count (CICT) | 3 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.49″ | Usable Length (LU) | 1.9″ |
| Overall Length (OAL) | 9.84″ | Flute Count (NOF) | 3 |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | T490 LNMT 1306PNTR | Body Material | Steel |
| Weight of Item (WT) | 4.48 Lbs | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 90° endmills carrying T490 LNMT/LNHT 13... tangentially clamped inserts with 4 helical, .490″ long cutting edges (HELITANGT490 Line). | Country of Origin | Israel |
Shipping Info
Package Weight
4.861
