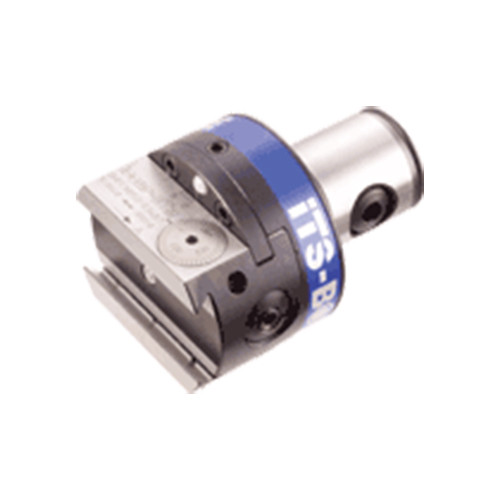

BHF MB80-80X94

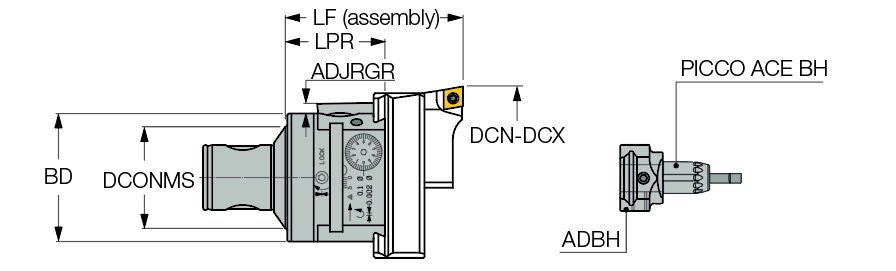

| Cutting Diameter Minimum (DCN) | 2.5 mm | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 220 mm | Measurement Type | Metric |
| Functional Length (LF) | 58 mm | Weight of Item (WT) | 2.63 Kg |
| Body Diameter (BD) | 80 mm | Rotational Speed Maximum (RPMX) | 5000 rpm |
| Connection Diameter Machine Side (DCONMS) | 80 mm | Body Material | Steel |
Product Features
| Family Description | Fine boring heads with the MB modular connection system and 2 µm direct diametric adjustment for a diameter range of 2.5 up to 500 mm. | Country of Origin | Italy |
| Remarks | Click on individual item, then on More Info to see the boring options and the split view of its spare parts |
