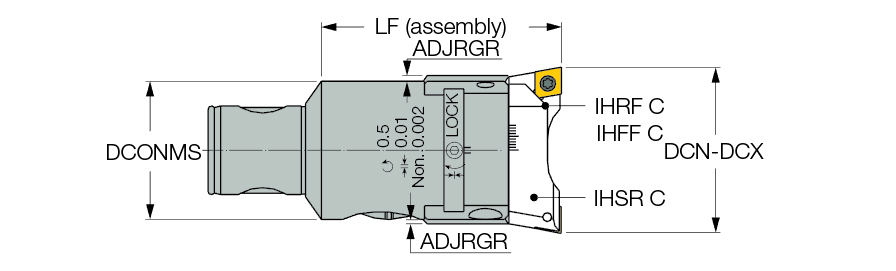

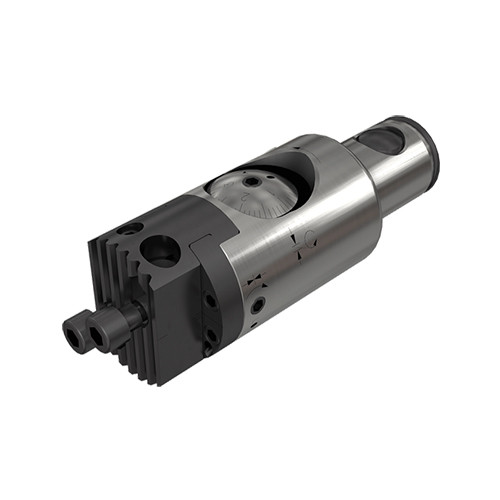

BHC MB50-50-87
| Cutting Diameter Minimum (DCN) | 60 mm | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 75 mm | Measurement Type | Metric |
| Functional Length (LF) | 87 mm | Weight of Item (WT) | 1.21 Kg |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Rotational Speed Maximum (RPMX) | 8000 rpm |
| Insert Holders (IH) | IH...-C | Body Material | Steel |
Product Features
| Family Description | Combi rough and fine boring heads with 10 µm direct diametric adjustment and 2 µm by a vernier scale. | Country of Origin | Italy |

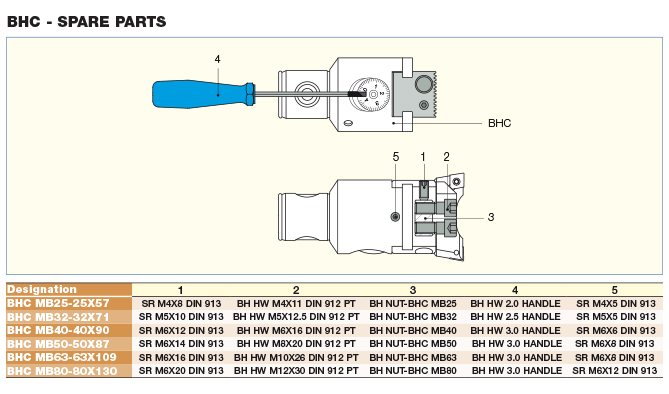

| Remarks | The roughing head precedes the finishing head by 0.2 mm. Each head can be adjusted independently Important: insert radius for combi rough and fine boring must be the same size. Click on individual item, then on "More Info" to see split view of its spare parts |
Shipping Info
Package Weight
2.670
Related Documentation
