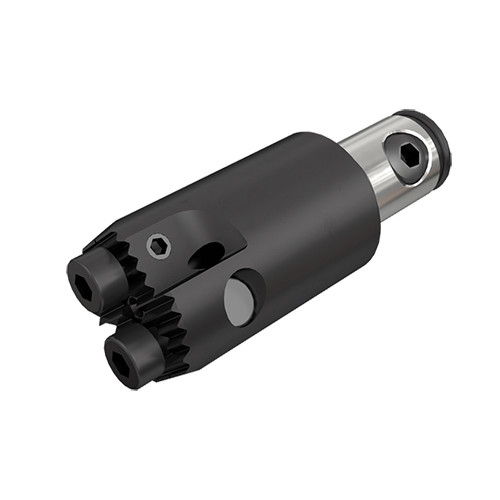

BHR MB32-32X63

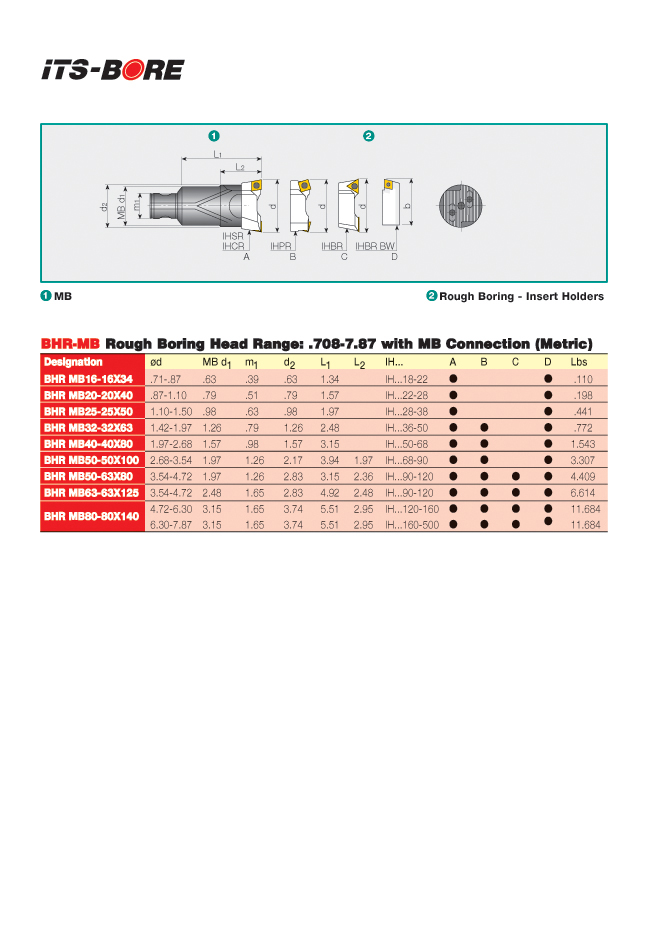

Rough boring heads for diameter range .709-7.874″ used on the MB modular boring system.

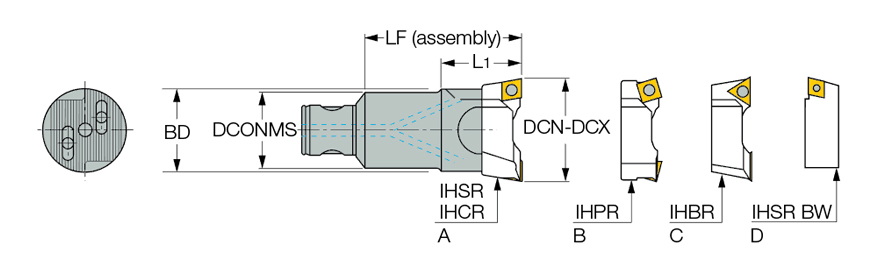

| Cutting Diameter Minimum (DCN) | 1.398″ | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 1.968″ | Tool Type | MB Rough boring heads |
| Functional Length (LF) | 2.48″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.339″ | Weight of Item (WT) | 0.79 Lbs |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Rotational Speed Maximum (RPMX) | 10000 rpm |
| Insert Holders (IH) | IH...36-50 | Body Material | Steel |
Product Features
| Family Description | Rough boring heads for diameter range .709-7.874″ used on the MB modular boring system. | Country of Origin | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. Click on individual item, then on More Info to see split view of its spare parts. |
