TCH AL300
Aluminum twin cutter heads for rough and fine boring operations, Diameter range 7.87-47.24″.

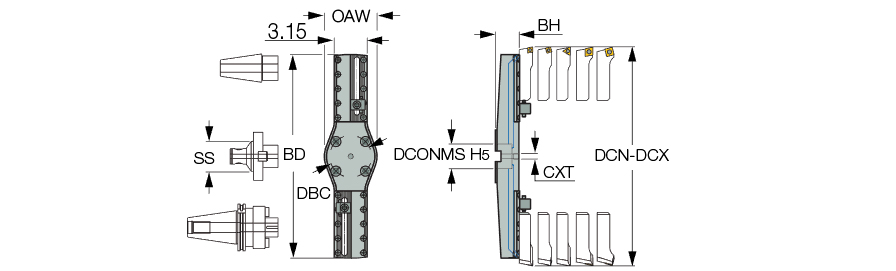

| Cutting Diameter Minimum (DCN) | 11.811″ | Tool Type | MB Rough boring heads |
| Cutting Diameter Maximum (DCX) | 27.638″ | Measurement Type | Inch |
| Functional Length (LF) | 2.126″ | Weight of Item (WT) | 8.6 Lbs |
| Body Diameter (BD) | 11.339″ | Rotational Speed Maximum (RPMX) | 400 rpm |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Aluminum twin cutter heads for rough and fine boring operations, Diameter range 7.87-47.24″. | Country of Origin | Italy |
| Remarks | Aluminum body, with steel serrated seats The "O" position on the counterweight balances the BHF boring head for 7.87″ boring diameter position. For every .394″ change in boring diameter, move the counterweight by 1 measurement mark Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability For dimensions with various insert holders, click on "More Info" |
Shipping Info
Package Weight
9.612

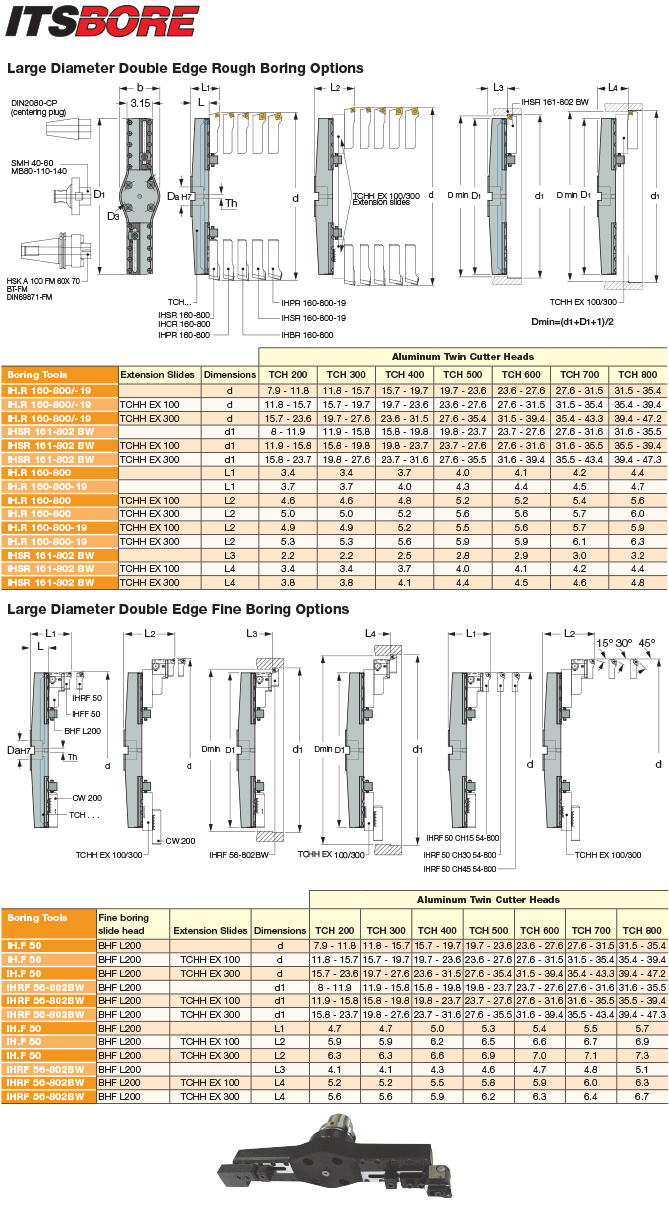

Related Documentation
