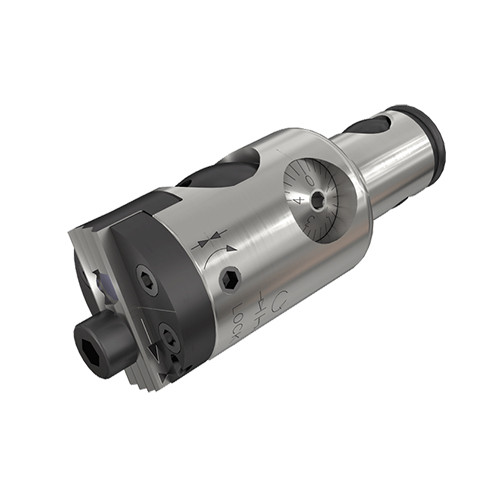

BHF MB32-32X63

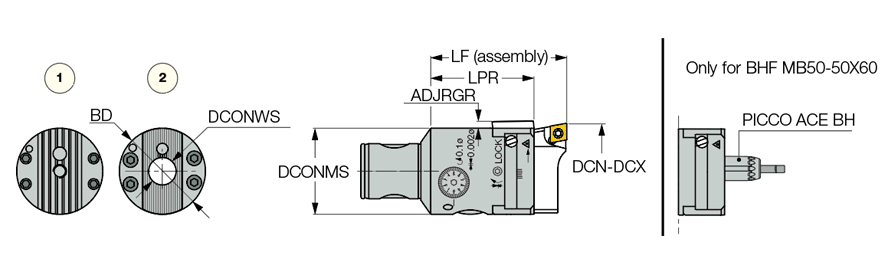

| Cutting Diameter Minimum (DCN) | 35.5 mm | Coolant Supply Property (CSP) | Through Hole |
| Cutting Diameter Maximum (DCX) | 50 mm | Tool Type | MB Fine boring heads |
| Functional Length (LF) | 51.5 mm | Measurement Type | Metric |
| Body Diameter (BD) | 32 mm | Weight of Item (WT) | 0.43 Kg |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Rotational Speed Maximum (RPMX) | 10000 rpm |
| Insert Holders (IH) | IH.. 32.. | Body Material | Steel |
Product Features
| Family Description | Fine boring heads with MB modular system connection and 2 µm direct diametric adjustment for a diameter range of 2.5 up to 108 mm. | Country of Origin | Italy |
| Remarks | Click on individual item, then on More Info to see split view of its spare parts and for boring options of BHF MB50-50X60 |
Shipping Info
Package Weight
0.946
