BHD MB63-63-89

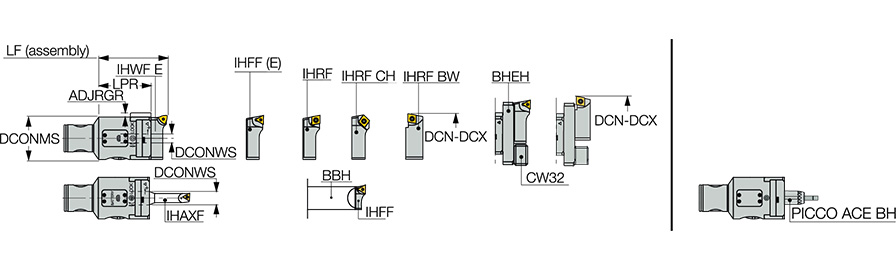

| Cutting Diameter Minimum (DCN) | 0.236″ | Connection Size Work Piece Side (DCONWS) | 0.62992″ |
| Cutting Diameter Maximum (DCX) | 4.921″ | Tool Type | MB Fine boring heads |
| Functional Length (LF) | 3.484″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Weight of Item (WT) | 4.85 Lbs |
| Coolant Supply Property (CSP) | Through Hole | Rotational Speed Maximum (RPMX) | 20000 rpm |
| Inner Diameter | 0.62992″ | Body Material | Steel |
Product Features

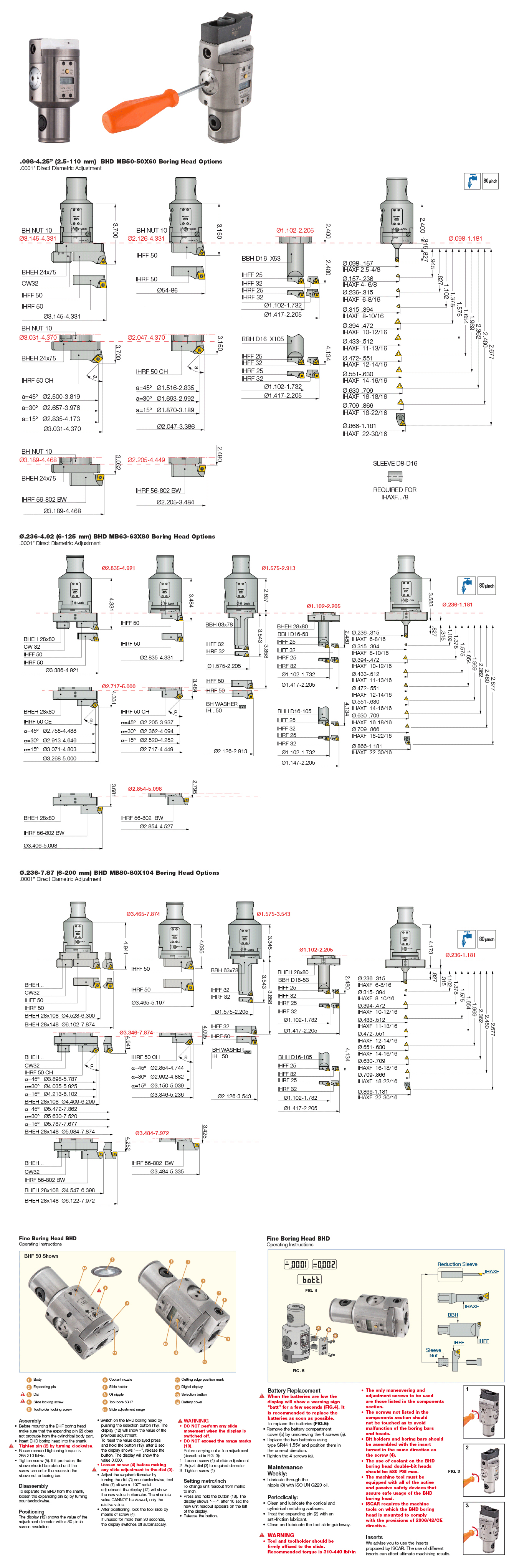

| Family Description | Fine boring heads with MB modular system connection and digital .0001″ direct diametric adjustment for diameter range of .0984 to 7.87″. | Country of Origin | Italy |
| Remarks | For boring options and operating instructions, click on "More Info" Note that a protruding reset button dictates the enlargement of the actual DCONMS by .079″ in each size respectively. This is important when the tool is being used for back-boring applications where you must clear any obstacles inside the machine/workpiece. |
Shipping Info
Package Weight
4.630
Related Documentation
