| Cutting Diameter Minimum (DCN) | 0.098″ | Tool Type | MB Fine boring heads |
| Cutting Diameter Maximum (DCX) | 4.331″ | Measurement Type | Inch |
| Functional Length (LF) | 3.15″ | Weight of Item (WT) | 2.43 Lbs |
| Connection Diameter Machine Side (DCONMS) | 1.968″ | Connection Diameter Workpiece Side (DCONWS) | 0.63″ |
| Coolant Supply Property (CSP) | Through Hole | Rotational Speed Maximum (RPMX) | 20000 rpm |
| Inner Diameter | 0.62992″ | Body Material | Steel |
| Connection Size Work Piece Side (DCONWS) | 0.62992″ |
Product Features

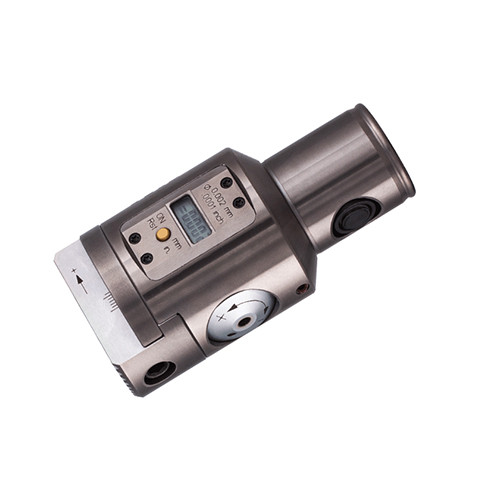

| Family Description | Fine boring heads with MB modular system connection and digital .0001″ direct diametric adjustment for diameter range of .0984 to 7.87″. | Country of Origin | Italy |
| Remarks | For boring options and operating instructions, click on More Info Note that a protruding reset button dictates the enlargement of the actual DCONMS by .079 in each size respectively. This is important when the tool is being used for back-boring applications where you must clear any obstacles inside the machine/workpiece. |
Shipping Info
Package Length
2.50000
Package Width
5.50000
Package Height
2.50000
Package Weight
2.33
