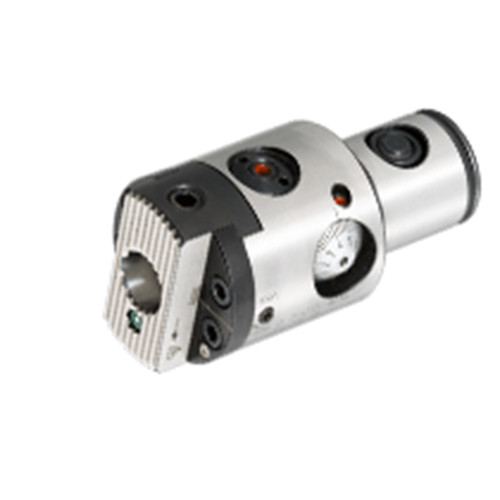

BHFI MB50-50X60

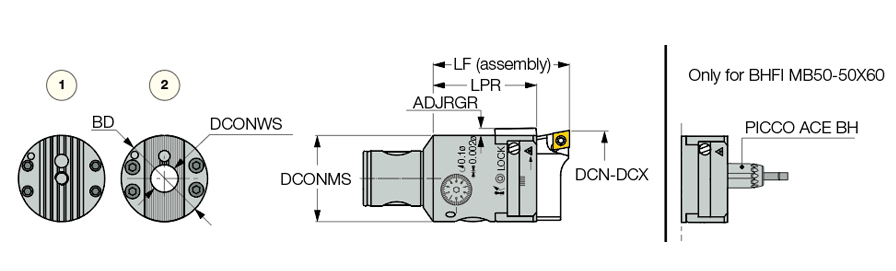

| Cutting Diameter Minimum (DCN) | 0.236″ | Connection Size Work Piece Side (DCONWS) | 0.63″ |
| Cutting Diameter Maximum (DCX) | 4.252″ | Tool Type | MB Fine boring heads |
| Functional Length (LF) | 2.362″ | Measurement Type | Inch |
| Body Diameter (BD) | 1.969″ | Weight of Item (WT) | 2.77 Lbs |
| Connection Diameter Machine Side (DCONMS) | 1.969″ | Connection Diameter Workpiece Side (DCONWS) | 0.63″ |
| Insert Holders (IH) | IH.. 50.. | Rotational Speed Maximum (RPMX) | 8000 rpm |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Steel |
| Inner Diameter | 0.63″ |
Product Features
| Family Description | Fine boring heads with MB modular system connection and .00008″ direct diametric adjustment | Country of Origin | Italy |
| Remarks | Click on individual item, then on More Info to see split view of its spare parts |
Shipping Info
Package Weight
2.429
