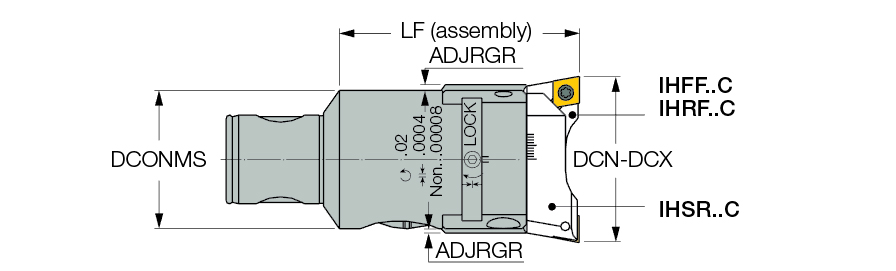

BHCI MB32-32-71
| Cutting Diameter Minimum (DCN) | 1.417″ | Tool Type | MB Fine boring heads |
| Cutting Diameter Maximum (DCX) | 1.811″ | Measurement Type | Inch |
| Functional Length (LF) | 2.795″ | Weight of Item (WT) | 1.01 Lbs |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Rotational Speed Maximum (RPMX) | 10000 rpm |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Steel |
Product Features
| Family Description | Combi rough and fine boring heads with .0004″ direct diametric adjustment and .00008″ by a vernier scale. | Country of Origin | Italy |

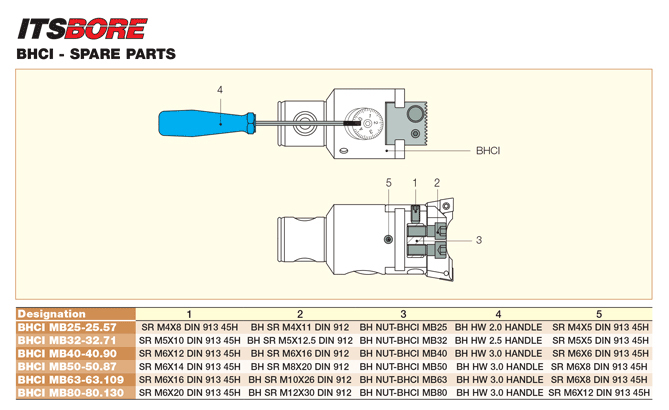

| Remarks | The roughing head precedes the finishing head by .008″ Each head can be adjusted independently Insert radius for combi rough and fine boring must be the same size. For spare parts details, click on More Info. |
Shipping Info
Package Weight
1.012
