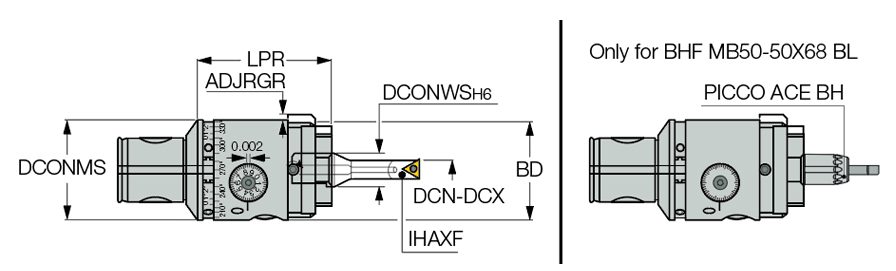

BHF MB50-32X60 BL
| Cutting Diameter Minimum (DCN) | 2.5 mm | Connection Size Work Piece Side (DCONWS) | 8 mm |
| Cutting Diameter Maximum (DCX) | 12 mm | Tool Type | MB Fine boring heads |
| Functional Length (LF) | 60 mm | Measurement Type | Metric |
| Body Diameter (BD) | 32 mm | Weight of Item (WT) | 0.8 Kg |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Diameter Workpiece Side (DCONWS) | 8 mm |
| Coolant Supply Property (CSP) | Through Hole | Rotational Speed Maximum (RPMX) | 20000 rpm |
| Inner Diameter | 8 mm | Body Material | Steel |
Product Features
| Family Description | Fine boring heads with 2 micrometer direct diametric adjustment, a balancing mechanism and MB modular system connection. Used for high rotation speed. | Country of Origin | Israel |
| Remarks | Click on individual item, then on "More Info" to see split view of its spare parts |
