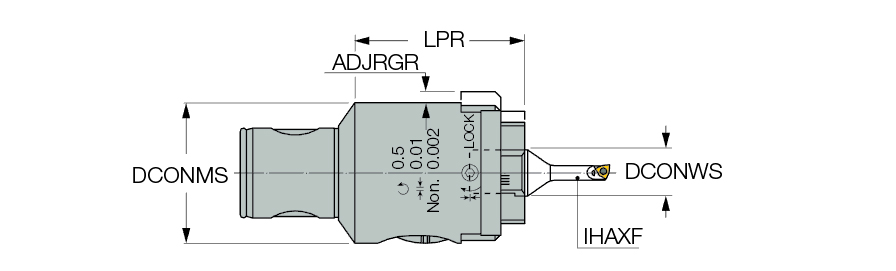

BHE MB32-32-53 H
| Cutting Diameter Minimum (DCN) | 2.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 18 mm | Weight of Item (WT) | 0.35 Kg |
| Functional Length (LF) | 53 mm | Connection Diameter Workpiece Side (DCONWS) | 8 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Rotational Speed Maximum (RPMX) | 10000 rpm |
| Coolant Supply Property (CSP) | Through Hole | Body Material | Steel |
| Connection Size Work Piece Side (DCONWS) | 8 mm |
Product Features
| Family Description | Fine boring heads for high rotation speed, used on the MB modular boring system. 10 micrometer direct diametric adjustment and 2 micrometer by a vernier scale. | Country of Origin | Italy |
| Remarks | Click on individual item, then on "More Info" to see split view of its spare parts. |
