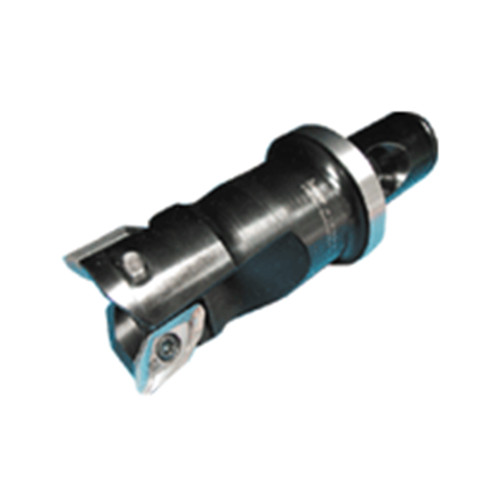

HM90 EAL-D1.5-L3.5-CF4-16
Indexable End Mill; 1-1/2″ Dia. × 0.61″ LOC × 1.732″ Shank Dia. × 5-1/2″ OAL × 3.43″ LU ; 2 FL ; CLICKFIT Shank ; 90 Degrees

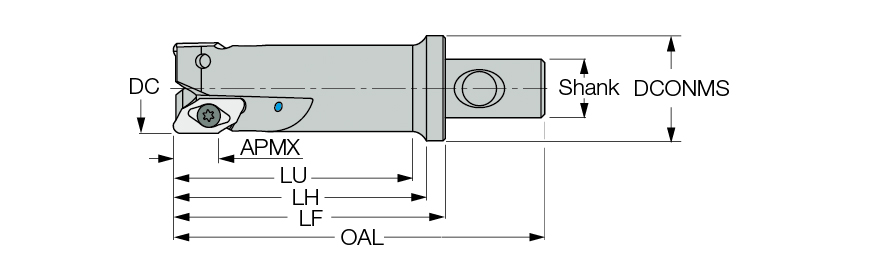

| Cutting Diameter (DC/DCX) | 1-1/2″ | Functional Length (LF) | 3.81″ |
| Cutting Diameter (DC) | 1-1/2″ | Tool Type | 90° Indexable for Aluminum |
| Cutting Item Count (CICT) | 2 | Usable Length (LU) | 3.43″ |
| Depth of Cut Maximum (APMX) | 0.61″ | Flute Count (NOF) | 2 |
| Overall Length (OAL) | 5-1/2″ | Corner Radius (RE) | 0.177″ |
| Shank Type | CLICKFIT | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 16.9 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.732″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | HM90 APCR 160540R-P | Body Material | Steel |
| Weight of Item (WT) | 1.63 Lbs | Connection Code Machine Side (CCMS) | CLICKFIT |
| Head Length (LH) | 3-1/2″ |
Product Features
| Family Description | Long reach 90° endmills with CLICKFIT adaptation carrying HM90 APCR 1605... inserts for machining aluminum | Country of Origin | Israel |
| Remarks | For inserts with a corner radius larger than .126, tools must be modified by rounding the corners of the tool body according to the formula: R body's corner = R insert + .02 For adaptation, click on More Info |
Shipping Info
Package Weight
1.852
