E90A D2.00-W1.00

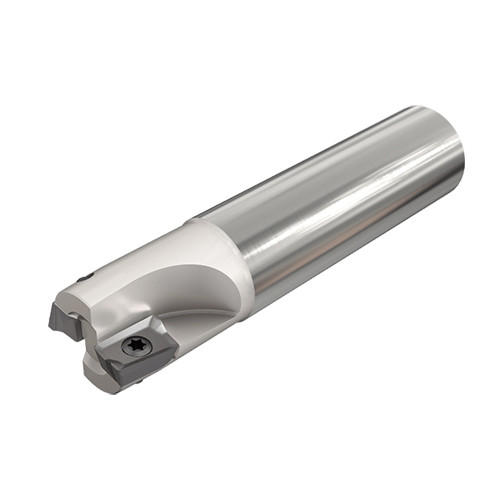

Indexable End Mill; 2″ Dia. × 0.39″ LOC × 1″ Shank Dia. × 4″ OAL ; 7 FL ; Weldon Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 2″ | Head Length (LH) | 1-1/4″ |
| Cutting Diameter (DC) | 2″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 7 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.39″ | Flute Count (NOF) | 7 |
| Overall Length (OAL) | 4″ | Coolant Supply Property (CSP) | External |
| Shank Type | Weldon | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 1.4 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Counter Boring | Facing | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | APKT 1003PDR-HM | Connection Code Machine Side (CCMS) | Weldon |
| Weight of Item (WT) | 1.32 Lbs |
Product Features
| Family Description | Endmills carrying APKT/APKR-10.. inserts. | Country of Origin | Israel |

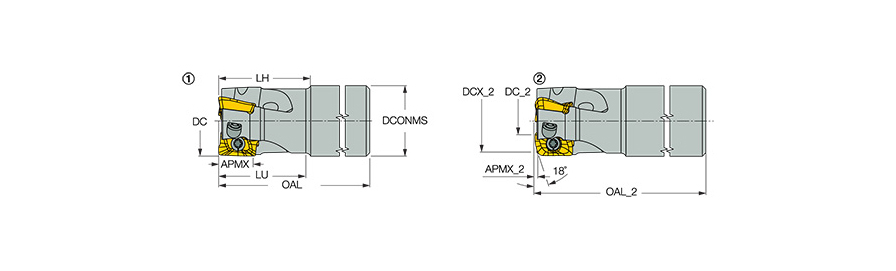

| Remarks | 1- with standard square insert 2- with FF (fast feed) insert For adaptation, click on More Info. |
Shipping Info
Package Weight
1.583
