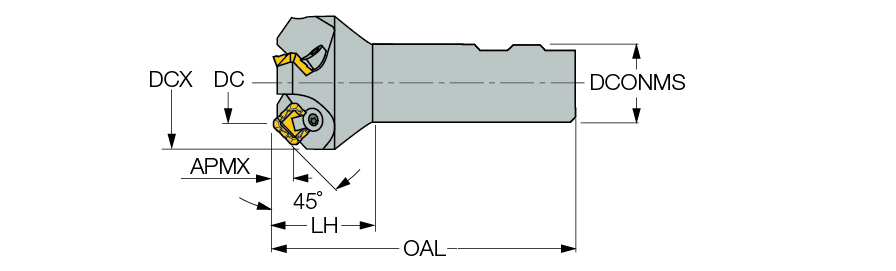

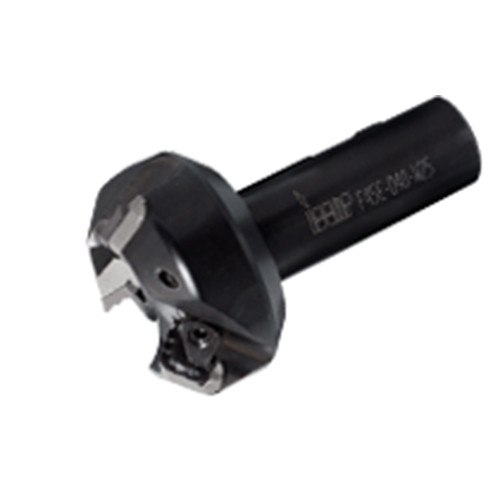

F45E D 1.50-W1.00
| Cutting Diameter (DC/DCX) | 1-1/2″ | Head Length (LH) | 1-1/4″ |
| Cutting Diameter (DC) | 1-1/2″ | Functional Length (LF) | 2.609″ |
| Cutting Item Count (CICT) | 3 | Tool Type | Chamfering endmills |
| Depth of Cut Maximum (APMX) | 0.256″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-3/4″ | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 0 Degrees | Measurement Type | Inch |
| Application | | Facing | Plunging & Recessing | Slanted Shoulder & Chamfer | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | SEK 42 | Cutting Diameter Maximum (DCX) | 2.2″ |
| Weight of Item (WT) | 1.42 Lbs |
Product Features
| Family Description | 45° endmills with SEKN/R 12... inserts. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
Shipping Info
Package Weight
1.609
