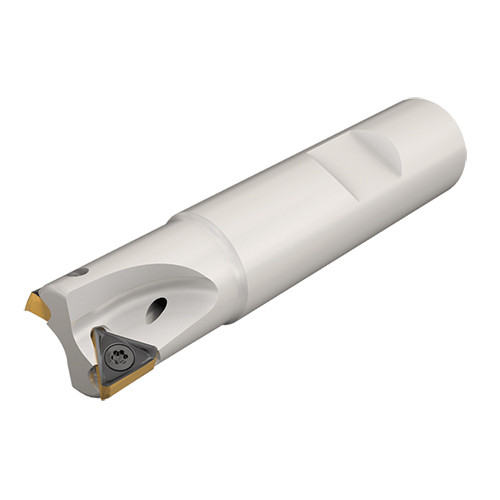

H690 E90AX D1.25-5W1.0-10
Indexable End Mill; 1-1/4″ Dia. × 0.31″ LOC × 1″ Shank Dia. × 4″ OAL ; 5 FL ; Weldon Shank ; 90 Degrees

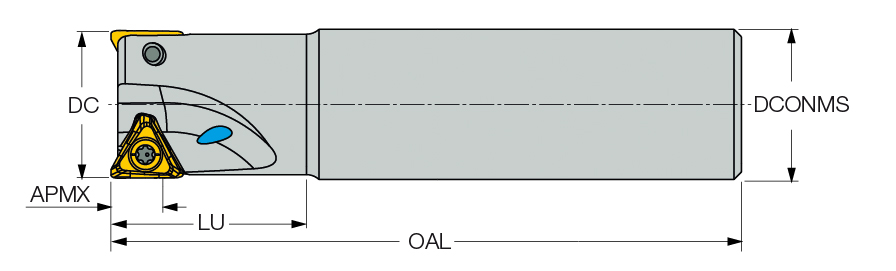

| Cutting Diameter (DC/DCX) | 1-1/4″ | Head Length (LH) | 1.48″ |
| Cutting Diameter (DC) | 1-1/4″ | Functional Length (LF) | 2.859″ |
| Cutting Item Count (CICT) | 5 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 0.31″ | Usable Length (LU) | 1.48″ |
| Overall Length (OAL) | 4″ | Flute Count (NOF) | 5 |
| Shank Type | Weldon | Coolant Supply Property (CSP) | Coolant Thru |
| Ramping Angle Maximum (RMPX) | 1.6 Degrees | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | H690 TNKX 100504PNTR | Body Material | Steel |
| Weight of Item (WT) | 0.79 Lbs | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 90° endmills carrying H690 TNKX 1005..triangular inserts with 6 helical cutting edges. | Country of Origin | Israel |
| Remarks | For adaptation, click on More Info. |
