GHIA 50-CF5

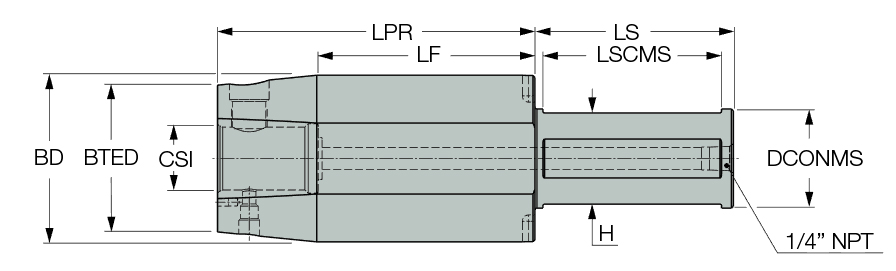

| Tool Type | Quick Change Milling Adaptation | Shank Type | Round Shank |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Measurement Type | Metric |
| Connection Size (CSI) | CF5 | Shank Size (SS) | 50mm |
| Protruding Length (LPR) | 160 mm | Body Material | Steel |
| Body Diameter (BD) | 84 mm | Body Taper End Diameter (BTED) | 74 mm |
| Overall Length (OAL) | 152.62 mm | Clamping Length Machine Side (LSCMS) | 90 mm |
| Shank Length (LS) | 100 mm | Functional Length (LF) | 110 mm |
| Coolant Supply Property (CSP) | Through Hole |
Product Features

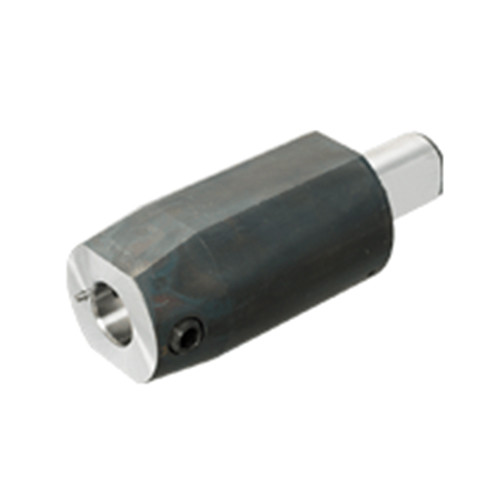

| Family Description | Female CLICKFIT CF5 holder with a straight cylindrical shank. | Country of Origin | Israel |
| Remarks | For adaptation Click on "More Info". |
Shipping Info
Package Weight
16.797
