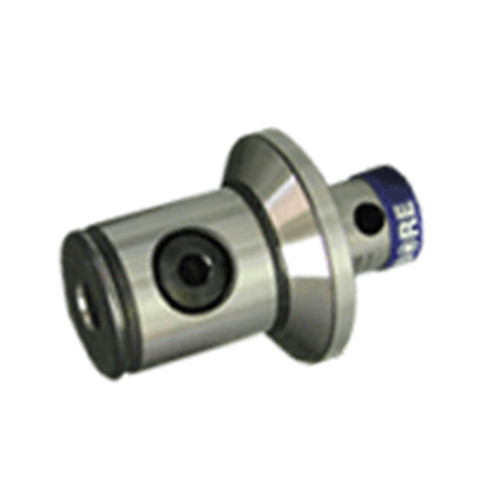

RE MB40-MB25X28

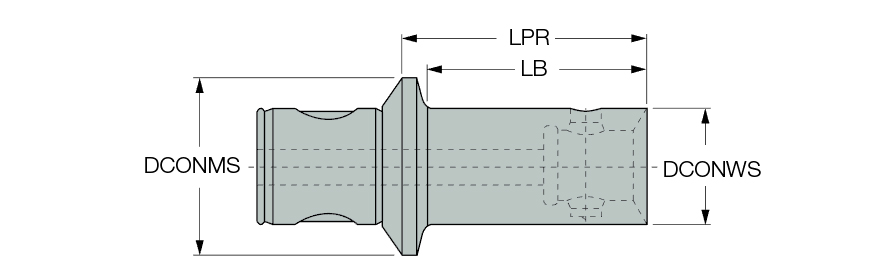

| Connection Diameter Machine Side (DCONMS) | 1.575″ | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | 0.9842″ | Tool Type | MB (modular boring connection) |
| Protruding Length (LPR) | 0.985″ | Measurement Type | Inch |
| Body Length (LB) | 0.866″ | Body Material | Steel |
| Overall Length (OAL) | 0.788″ |
Product Features
| Family Description | Reducers for the MB modular connection system. | Country of Origin | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
0.562
