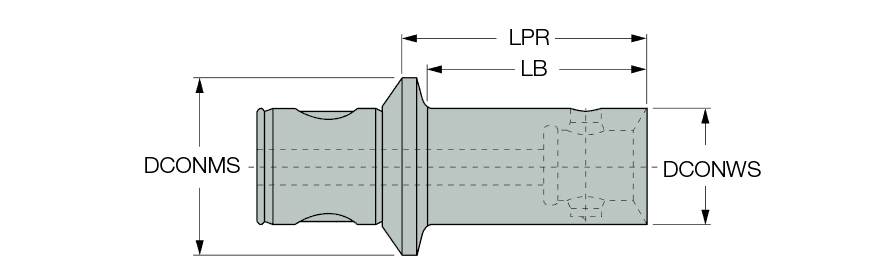

RE MB40-MB14X25
| Connection Diameter Machine Side (DCONMS) | 40 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | 14 mm | Tool Type | MB (modular boring connection) |
| Protruding Length (LPR) | 0.985″ | Measurement Type | Metric |
| Body Length (LB) | 16.5 mm | Body Material | Steel |
| Overall Length (OAL) | 0.788″ |
Product Features
| Family Description | Reducers for the MB modular connection system. | Country of Origin | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
0.502
