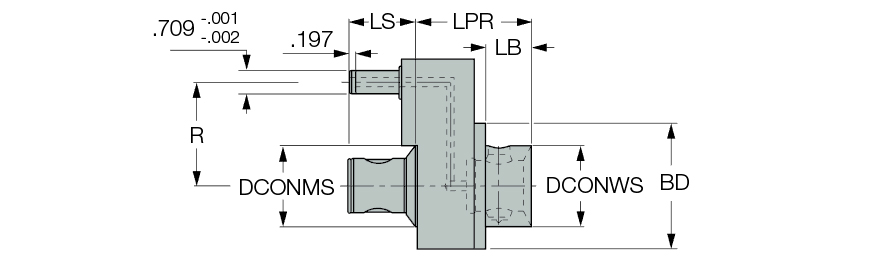

CHS MB63-R80
| Shank Size (SS) | MB63 | Coolant Supply Property (CSP) | Coolant Thru |
| Protruding Length (LPR) | 3.465″ | Rotational Speed Maximum (RPMX) | 5600 Rev/min |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Body Material | Steel |
| Connection Diameter Workpiece Side (DCONWS) | 2.4803″ | Measurement Type | Inch |
| Connection Size (CSI) | MB63 | Tool Type | MB (modular boring connection) |
Product Features

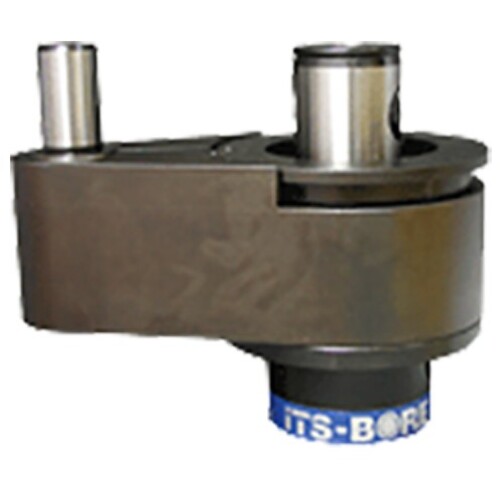

| Family Description | Coolant supply collar with a stopper for the MB modular boring system. | Country of Origin | Italy |
| Remarks | Use with stop block Important: coolant flow must be started prior to rotating the spindle to avoid damage of the O-rings Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
11.365
