EMH MB63-3/4 MODULAR
| Shank Size (SS) | MB63 | Application | | ITSBORE System | |
| Protruding Length (LPR) | 2.6″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |

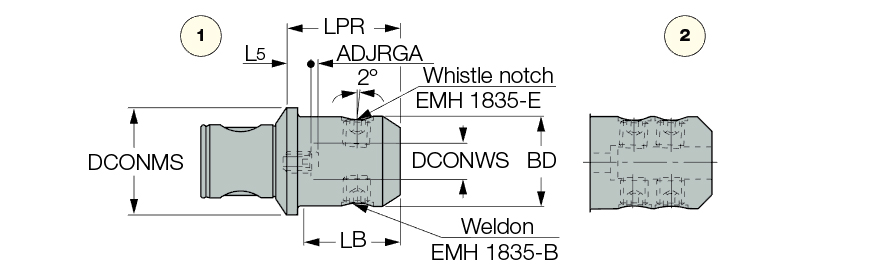

| Connection Diameter Workpiece Side (DCONWS) | 3/4″ | Figure | 1 |
| Connection Size (CSI) | W.750 | Tool Type | MB General Tools Holders |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Weldon and Whistle Notch side-lock holders with the MB modular boring connection system. | Country of Origin | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Package Weight
3.337
