12A5H-05015S4R01

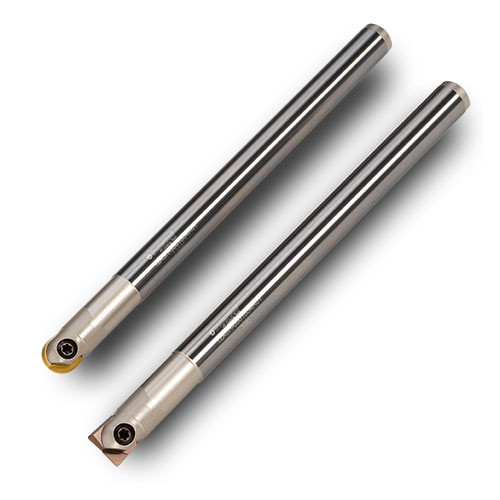

Indexable End Mill; 1/2″ Dia. × 1/2″ Shank Dia. × 7″ OAL × 1-1/2″ LU
| Cutting Diameter (DC/DCX) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Cutting Diameter (DC) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 7″ | Measurement Type | Inch |
| Application | | Helical Interpolation | Rampdown | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Protruding Length (LPR) | 5.22″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 1-1/2″ |
Product Features
| Family Description | High-precision insert with 1 index | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.859
