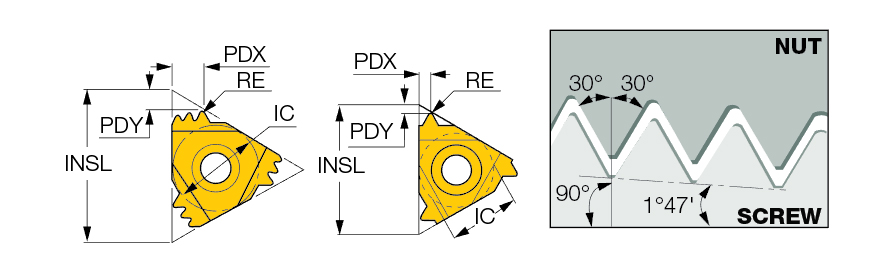

16ERM 11.5 NPT IC808
Laydown Threading Insert ; 11.5 Threads/" TPI ; 60 Triangle Shape ; THFT | ; Carbide ; IC808 ; TiAlN+AlTiN+TiN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 11.5 Threads/" | Shape | 60° Triangle |
| Corner Radius (RE) | 0.09 mm | Cutting Item Count (CICT) | 2 |
| Grade | IC808 | Tool Type | Threading Regular Inserts |
| Coating | TiAlN+AlTiN+TiN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Cutting Position | Internal | Thread Form Type (THFT) | NPT60 |
| Application | | External Threading | |
Product Features
| Family Description | External NPT (National Pipe Threads) full profile laydown threading inserts. ER/L - ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - with a chipformer. Used for steam, gas and water pipes. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on "More Info". For threading between walls use GRIP-type insert TIP-NPT. National Pipe Threads ANSI/ASME B1.20.1-1983 |
Shipping Info
Package Weight
0.008
