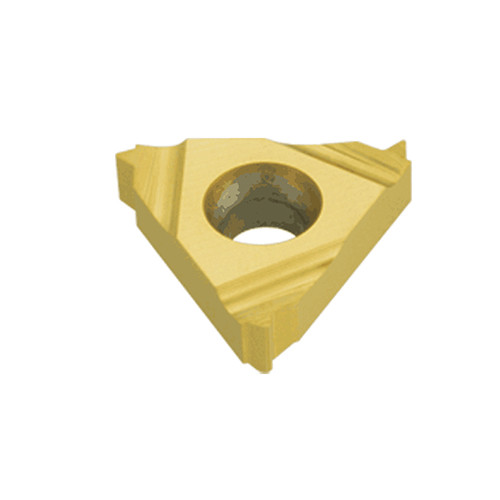

11ER 14 NPTF IC908
Laydown Threading Insert ; 14 TPI ; 60 Triangle Shape ; 0.433″ Length ; 1/4″ IC ; THFT | ; Carbide ; IC908 ; TiAlN
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

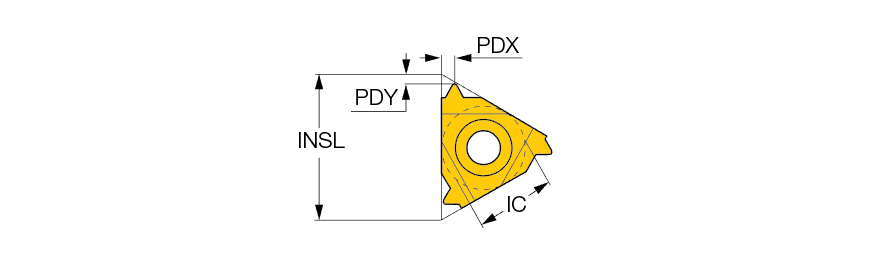

| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.433″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 14 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0028″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Cutting Position | External | Thread Form Type (THFT) | NPTF60 |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Profile Distance EY (PDY) | 0.0287″ |
Product Features
| Family Description | External NPTF (National Pipe Threads-Dry seal) ANSI/ASME B1.20.1-1976, full profile laydown threading inserts, for steam, gas and water pipes. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info (National Pipe Threads-Dry Seal) ANSI/ASME B1.20.1-1976 full profile |
Shipping Info
Package Weight
0.004
